Aluminium Garden Poles

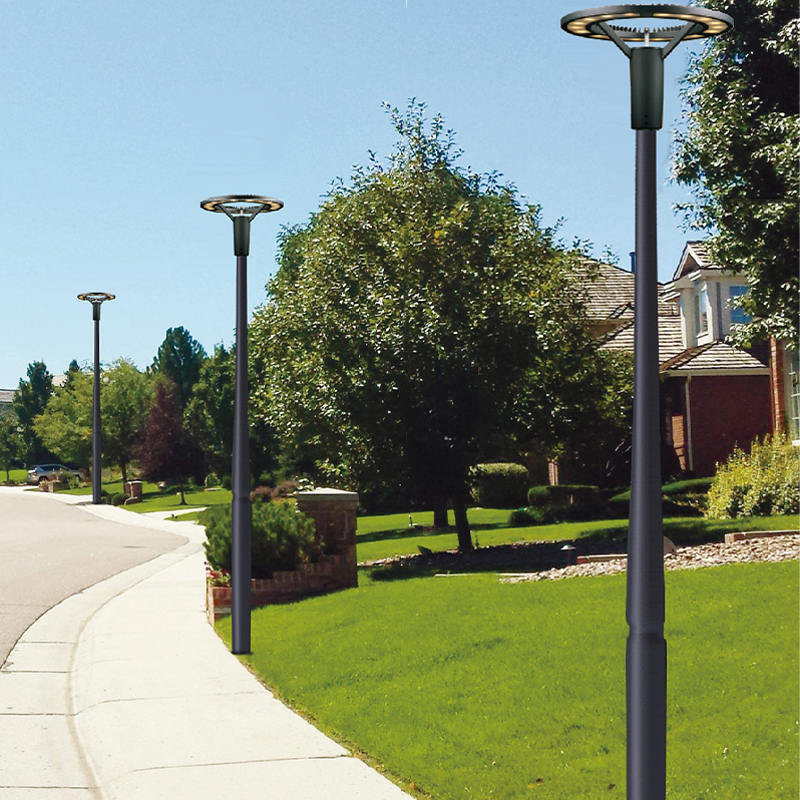

WEXFORD Aluminum Garden Pole

WEXFORD Aluminum Garden Pole

Bottom Diameter: φ127-140mm
Spigot Diameter: φ60/76mm
Materials: Aluminum 6063-T6
Wall Thickness: 3mm
Surface Finish: Satin Brushed, Anodizing, Powder Coating

Enquiry

Flange Mount

Item No.
Height (m) Bottom Dia (mm) Top Dia (mm) Door Dimension (mm) Door Position (mm) Flange Dimension (mm) Bolt Circle (mm) Bolt Size
GIP8976-25-BS-FG 2.5 127 89 85x400 500 260x260 200 4xM12
GIP8976-30-BS-FG 3 127 89 85x400 500 260x260 200 4xM12
GIP8976-35-BS-FG 3.5 140 89 85x400 500 260x260 200 4xM16
GIP8976-40-BS-FG 4 140 89 85x400 500 260x260 200 4xM16
