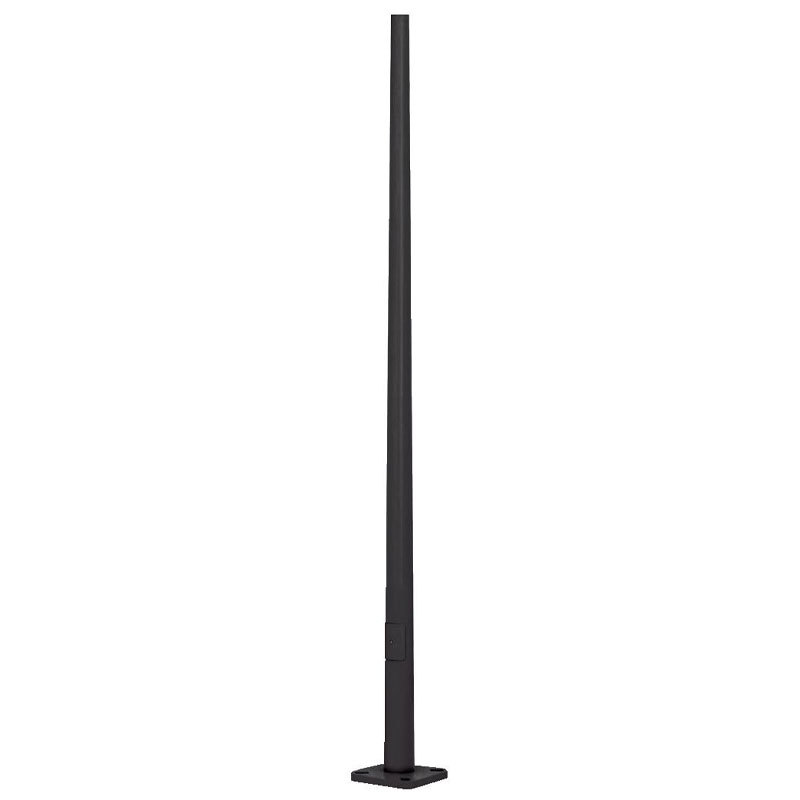

Round Tapered Steel Light Pole

This conical steel pole is made of high-quality steel. The conical structure design combines aesthetics with structural strength. It can effectively disperse wind loads and is an ideal choice for outdoor lighting. The bottom of the pole adopts a 4-bolt steel plate base flange, which is made of carbon steel that meets the ASTM A36 standard. It has excellent mechanical properties and durability, and the minimum yield strength is 36,000 PSI, ensuring long-term stable use under special environmental conditions. To simplify the installation process, the pole is equipped with a 2-piece base cover and connecting hardware. It adopts a modular design and can be quickly assembled and firmly fixed to the pole base. The two-piece molded steel base cover is not only easy to install and maintain, but also effectively protects the internal structure while presenting a neat and uniform appearance.

Enquiry

Pole

Confirming to ASTM-A500 Grade C with a minimum yield strength of 50,000 PSI.
Wall thickness available in 11 gauge (.120″) or 7 gauge (.180″).

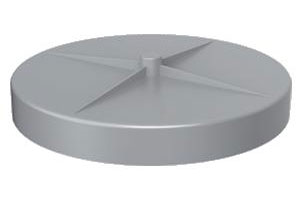

Pole Cap

A removable polycarbonate pole cap is included. Special color available on special request.

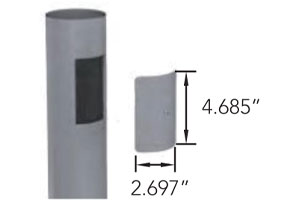

Hand Hole

Cast iron reinforced hand hole with cover, ground screw, and backbar.

Base Plate

4-bolt steel plate base flange of fabricated carbon steel conforming to ASTM A36 with a minimum yield strength of 36,000 PSI, with a 2-piece base cover and attaching hardware.

Base Cover

Poles are provided with a two-piece formed steel base cover that is easily assembled and fitted over the pole base. (order separately)

Anchorage

Anchorage kit will include four (4) L-shaped galvanized steel anchor bolts conforming to ASTM F1554 Grade 55 with a minimum yield strength of 55,000 PSI.

Different bolt size fits different pole sizes. (order separately)

Vibration Damper

If determined necessary by Morelux, or if specified by the customer, a first and/or second mode vibration damper will be provided. (order separately)

Finish

Textured architectural bronze powder coated, galvanized, or powder coated over galvanized finish per customer specification.
Special color available per customer request.
