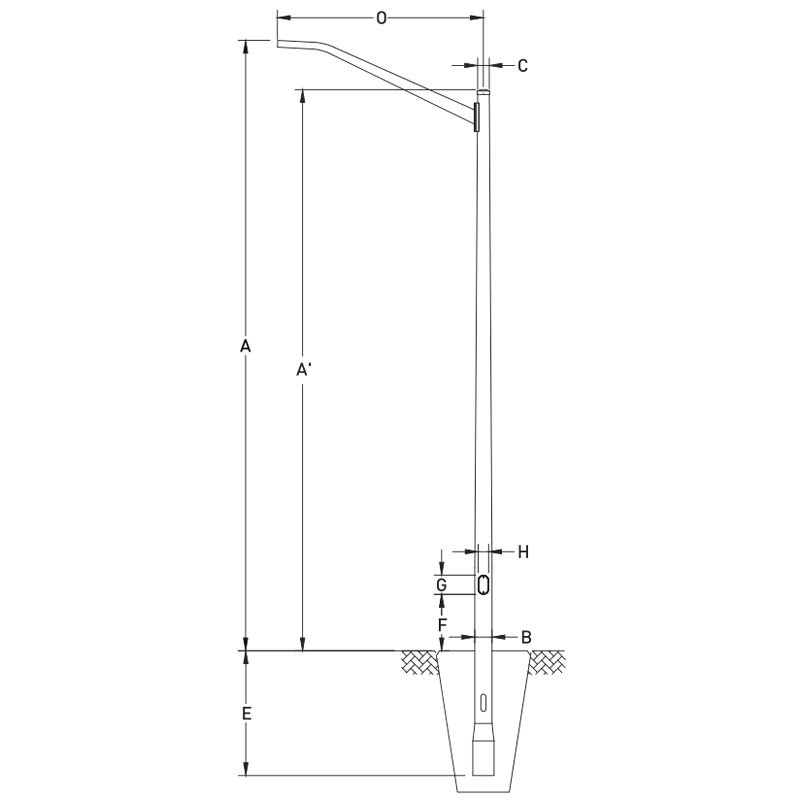

| Item Code | Mounting Height "Ft" A |
Arm Length "Ft" O |
Pole Height "Ft" A' |
Embed Length "Ft" E |
Bottom Dia "In" B |
Top Dia "In" C |
Wall Thickness "In" |
Door Heght "In" F |
Door Size "In" H*G |
Approx Weight "Ibs" |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
||
| AP-60-45-C-19-X-XX-XX | 20 | 4 | 19 | 4 | 6 | 4.5 | 0.156 | 18 | 3*5 | 92.68 |
| AP-60-45-C-18-X-XX-XX | 20 | 6 | 18 | 4 | 6 | 4.5 | 0.156 | 18 | 3*5 | 92.55 |
| AP-60-45-C-17-X-XX-XX | 20 | 8 | 17 | 4 | 6 | 4.5 | 0.156 | 18 | 3*5 | 94.78 |
| AP-60-45-D-19-X-XX-XX | 20 | 4 | 19 | 4 | 6 | 4.5 | 0.188 | 18 | 3*5 | 100.02 |
| AP-60-45-D-18-X-XX-XX | 20 | 6 | 18 | 4 | 6 | 4.5 | 0.188 | 18 | 3*5 | 107.87 |
| AP-60-45-D-17-X-XX-XX | 20 | 8 | 17 | 4 | 6 | 4.5 | 0.188 | 18 | 3*5 | 111.17 |
| AP-60-45-C-24-X-XX-XX | 25 | 4 | 24 | 4 | 6 | 4.5 | 0.156 | 18 | 3*5 | 109.6 |
| AP-60-45-C-23-X-XX-XX | 25 | 6 | 23 | 4 | 6 | 4.5 | 0.156 | 18 | 3*5 | 135.78 |
| AP-60-45-C-22-X-XX-XX | 25 | 8 | 22 | 4 | 6 | 4.5 | 0.156 | 18 | 3*5 | 127 |
| AP-60-45-D-24-X-XX-XX | 25 | 4 | 24 | 4 | 6 | 4.5 | 0.188 | 18 | 3*5 | 122.9 |
| AP-60-45-D-23-X-XX-XX | 25 | 6 | 23 | 4 | 6 | 4.5 | 0.188 | 18 | 3*5 | 131.34 |
| AP-60-45-D-22-X-XX-XX | 25 | 8 | 22 | 4 | 6 | 4.5 | 0.188 | 18 | 3*5 | 127.24 |
| AP-70-45-C-24-X-XX-XX | 25 | 4 | 24 | 5 | 7 | 4.5 | 0.156 | 18 | 4*6 | 128.34 |
| AP-70-45-C-23-X-XX-XX | 25 | 6 | 23 | 5 | 7 | 4.5 | 0.156 | 18 | 4*6 | 132.15 |
| AP-70-45-C-22-X-XX-XX | 25 | 8 | 22 | 5 | 7 | 4.5 | 0.156 | 18 | 4*6 | 132.84 |
| AP-70-45-D-24-X-XX-XX | 25 | 4 | 24 | 5 | 7 | 4.5 | 0.188 | 18 | 4*6 | 151.14 |
| AP-70-45-D-23-X-XX-XX | 25 | 6 | 23 | 5 | 7 | 4.5 | 0.188 | 18 | 4*6 | 154.18 |
| AP-70-45-D-22-X-XX-XX | 25 | 8 | 22 | 5 | 7 | 4.5 | 0.188 | 18 | 4*6 | 154.07 |
| AP-80-45-D-29-X-XX-XX | 30 | 4 | 29 | 5 | 8 | 4.5 | 0.188 | 18 | 4*6 | 195.3 |
| AP-80-45-D-28-X-XX-XX | 30 | 6 | 28 | 5 | 8 | 4.5 | 0.188 | 18 | 4*6 | 194.26 |
| AP-80-45-D-27-X-XX-XX | 30 | 8 | 27 | 5 | 8 | 4.5 | 0.188 | 18 | 4*6 | 193.29 |
| AP-80-45-D-34-X-XX-XX | 35 | 4 | 34 | 5 | 8 | 4.5 | 0.188 | 18 | 4*6 | 220.05 |
| AP-80-45-D-33-X-XX-XX | 35 | 6 | 33 | 5 | 8 | 4.5 | 0.188 | 18 | 4*6 | 193.29 |
| AP-80-45-D-32-X-XX-XX | 35 | 8 | 32 | 5 | 8 | 4.5 | 0.188 | 18 | 4*6 | 220.05 |
| AP-80-45-E-34-X-XX-XX | 35 | 4 | 34 | 5 | 8 | 4.5 | 0.25 | 18 | 4*6 | 230.83 |
| AP-80-45-E-33-X-XX-XX | 35 | 6 | 33 | 5 | 8 | 4.5 | 0.25 | 35 | 4*6 | 229.86 |
| AP-80-45-E-32-X-XX-XX | 35 | 8 | 32 | 5 | 8 | 4.5 | 0.25 | 18 | 4*6 | 287.74 |
| AP-10-60-D-34-X-XX-XX | 35 | 4 | 34 | 6 | 10 | 6 | 0.188 | 18 | 4*8 | 293.56 |
| AP-10-60-D-33-X-XX-XX | 35 | 6 | 33 | 6 | 10 | 6 | 0.188 | 18 | 4*8 | 290.76 |
| AP-10-60-D-32-X-XX-XX | 35 | 8 | 32 | 6 | 10 | 6 | 0.188 | 18 | 4*8 | 285.07 |
| AP-80-45-D-38-X-XX-XX | 40 | 6 | 38 | 6 | 8 | 4.5 | 0.188 | 18 | 4*6 | 273.47 |
| AP-80-45-D-37-X-XX-XX | 40 | 8 | 37 | 6 | 8 | 4.5 | 0.188 | 18 | 4*6 | 271.09 |
| AP-80-45-E-38-X-XX-XX | 40 | 6 | 38 | 6 | 8 | 4.5 | 0.25 | 18 | 4*6 | 260.55 |
| AP-80-45-E-37-X-XX-XX | 40 | 8 | 37 | 6 | 8 | 4.5 | 0.25 | 18 | 4*6 | 265.23 |
| AP-10-60-D-38-X-XX-XX | 40 | 6 | 38 | 6 | 10 | 6 | 0.188 | 18 | 4*8 | 323.43 |
| AP-10-60-D-37-X-XX-XX | 40 | 8 | 37 | 6 | 10 | 6 | 0.188 | 18 | 4*8 | 320.9 |
