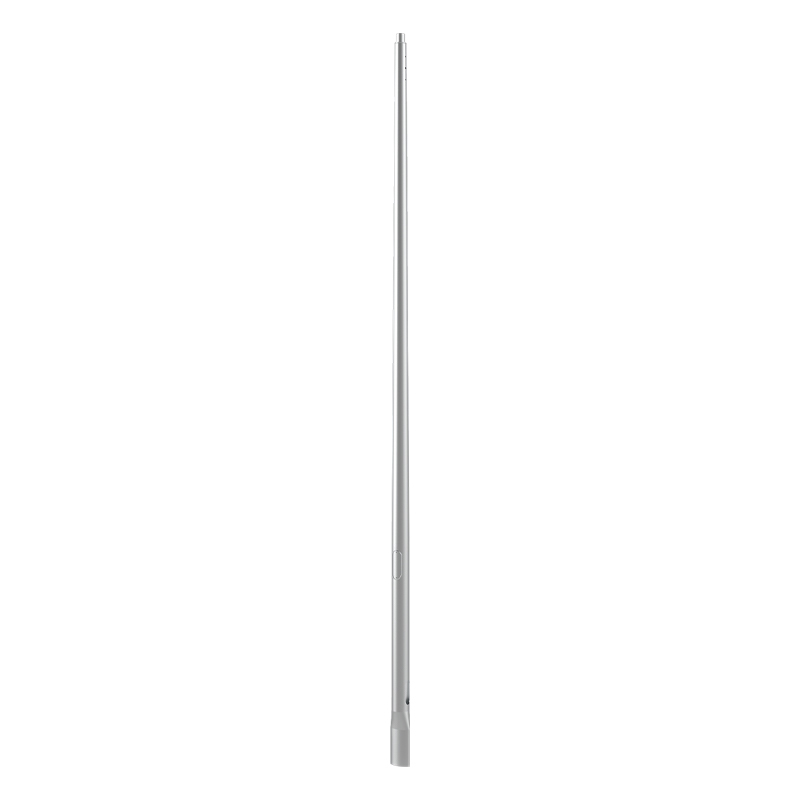

10ft-40ft Aluminum Conical Light Pole, Planted Mounting

POLE

Confirming to ASTM B221, the Pole shaft will be made by extruded AL6063； The whole shaft will be full-length T6 heat-treated after the base flange is welded.

HAND HOLE

Cast Aluminum reinforced hand hole with aluminum door cover, and a ground screw provision will be provided opposite the hand hole.

EMBED DETAIL

Wire access will be provided 24'' above the Pole bottom, Pole Bottom flattening to prevent the pole shaft from rotating.

Enquiry

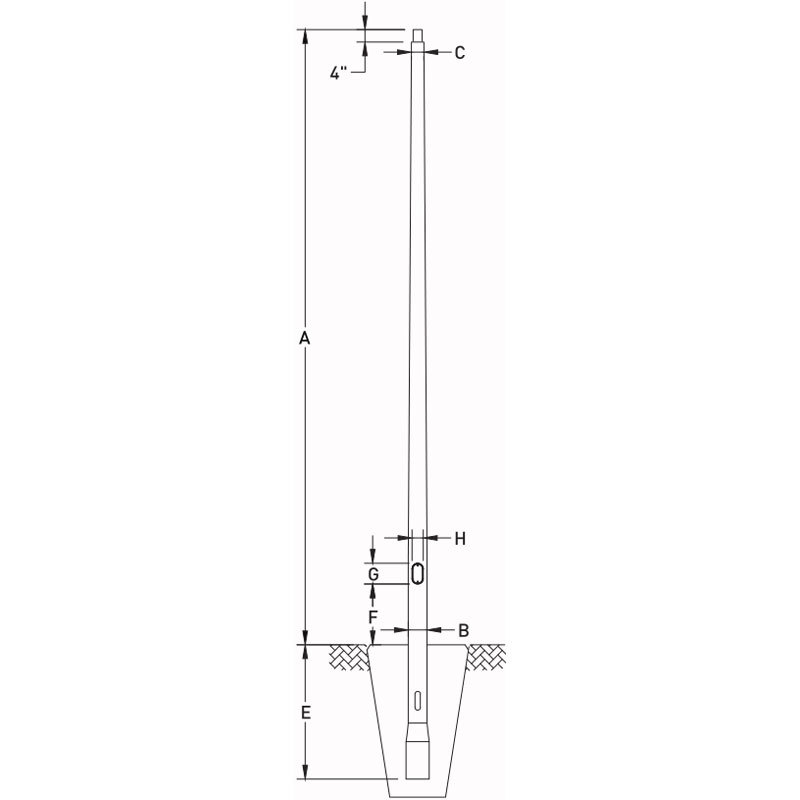

Item Code	Mounting Height "Ft" A	Embed Length "Ft" E	Bottom Dia "In" B	Top Dia "In" C	Wall Thickness "In"	Door Heght "In" F	Door Size "In" H*G	Approx Weight "Ibs"
Item Code
AP-40-30-B-10-X-XX-T	10	3	4	3	0.125	18	2*4	29.17
AP-40-30-B-12-X-XX-T	12	3	4	3	0.125	18	2*4	32.21
AP-40-30-B-14-X-XX-T	14	3	4	3	0.125	18	2*4	35.85
AP-60-40-B-16-X-XX-T	16	4	6	4	0.125	18	3*5	58.36
AP-60-40-C-16-X-XX-T	16	4	6	4	0.156	18	3*5	72.27
AP-60-40-D-16-X-XX-T	16	4	6	4	0.188	18	3*5	83.16
AP-60-40-B-18-X-XX-T	18	4	6	4	0.125	18	3*5	63.82
AP-60-40-C-18-X-XX-T	18	4	6	4	0.156	18	3*5	79.1
AP-60-40-D-18-X-XX-T	18	4	6	4	0.188	18	3*5	94.36
AP-60-40-B-20-X-XX-T	20	4	6	4	0.125	18	3*5	69.34
AP-60-40-C-20-X-XX-T	20	4	6	4	0.156	18	3*5	85.96
AP-60-40-D-20-X-XX-T	20	4	6	4	0.188	18	3*5	102.6
AP-60-40-D-25-X-XX-T	25	4	6	4	0.188	18	3*5	123.06
AP-70-40-C-25-X-XX-T	25	5	7	4	0.156	18	4*6	124.16
AP-70-40-D-25-X-XX-T	25	5	7	4	0.188	18	4*6	148.4
AP-80-45-C-25-X-XX-T	25	5	8	4.5	0.156	18	4*6	141.3
AP-80-45-D-25-X-XX-T	25	5	8	4.5	0.188	18	4*6	168.98
AP-70-40-D-30-X-XX-T	30	5	7	4	0.188	18	4*6	170.8
AP-80-45-D-30-X-XX-T	30	5	8	4.5	0.188	18	4*6	194.5
AP-80-45-E-30-X-XX-T	30	5	8	4.5	0.25	18	4*6	256.33
AP-10-60-D-30-X-XX-T	30	6	10	6	0.188	18	4*8	250.67
AP-10-60-E-30-X-XX-T	30	6	10	6	0.25	18	4*8	330.34
AP-80-45-D-35-X-XX-T	35	5	8	4.5	0.188	18	4*6	216.32
AP-80-45-E-35-X-XX-T	35	5	8	4.5	0.25	18	4*6	285.23
AP-10-60-D-35-X-XX-T	35	6	10	6	0.188	18	4*8	278
AP-10-60-E-35-X-XX-T	35	6	10	6	0.25	18	4*8	366.5
AP-80-45-D-40-X-XX-T	40	5	8	4.5	0.188	18	4*6	240.17
AP-80-45-E-40-X-XX-T	40	5	8	4.5	0.25	18	4*6	315.92
AP-10-60-D-40-X-XX-T	40	0	10	6	0.188	18	4*8	307.61
AP-10-60-E-40-X-XX-T	40	6	10	6	0.25	18	4*8	405.67
