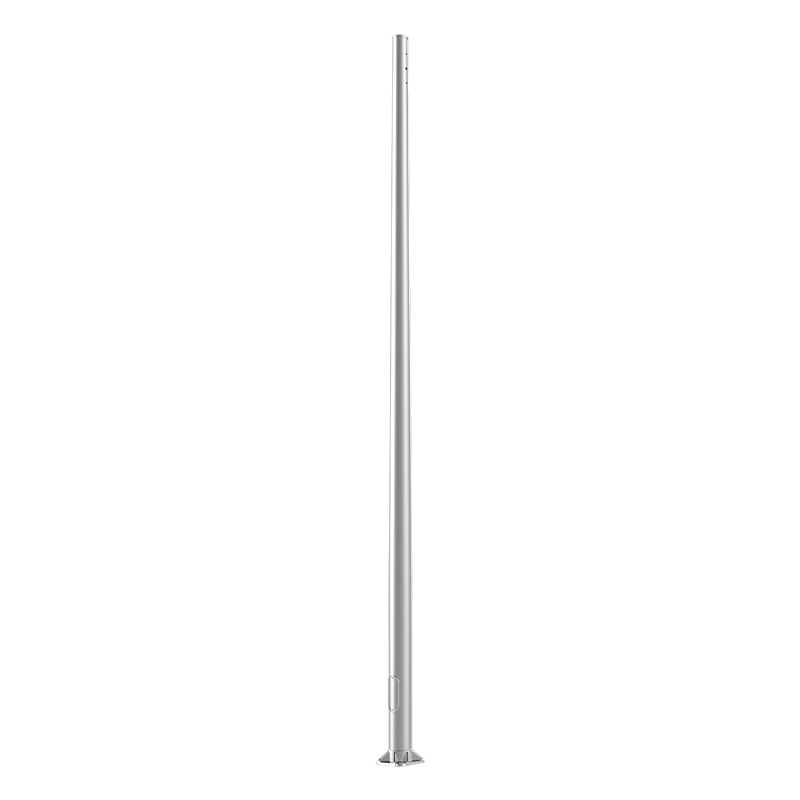

10ft-40ft Aluminum Conical Light Pole With Top Cover, Base Flange Mounting

POLE

Confirming to ASTM B221, the Pole shaft will be made by extruded AL6063； The whole shaft will be full-length T6 heat-treated after the base flange is welded.

HAND HOLE

Cast Aluminum reinforced hand hole with aluminum door cover, and a ground screw provision will be provided opposite the hand hole.

BASE PLATE

Cast Aluminum Base Flange, made by A356-T6 material.

BASE COVER

Round cast aluminium base cover, made of A356 Material.

TOP COVER

Round cast aluminium top cover, made of A356 Material.

Enquiry

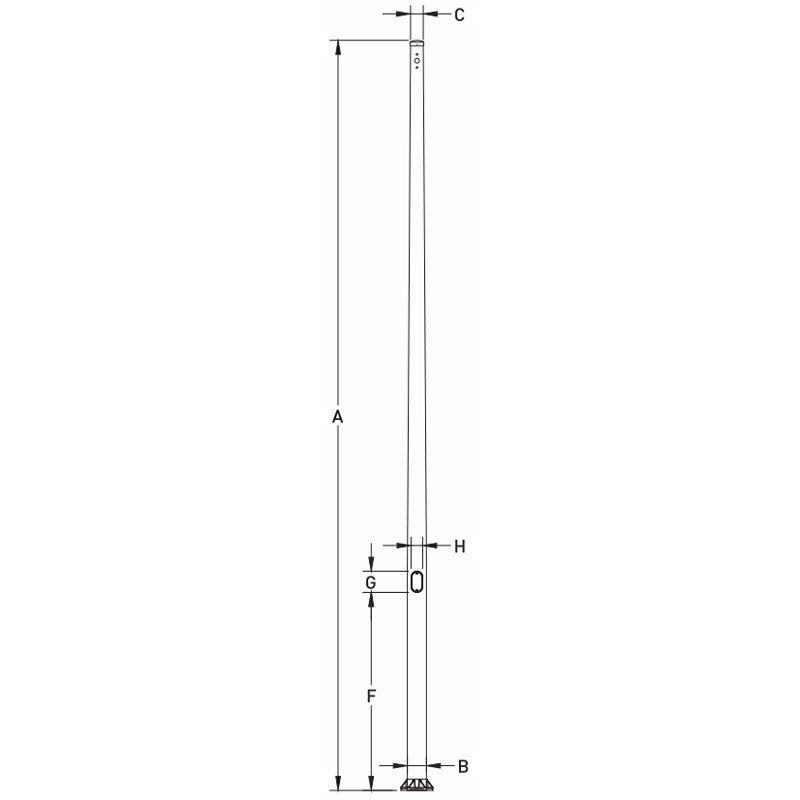

Item Code	Mounting Height "Ft" A	Bottom Dia "In" B	Top Dia "In" C	Wall Thickness "In"	Door Heght "In" F	Door Size "In" H*G	Base Plate "In"	Bolt Size "In"	Bolt Circle "In"	Approx Weight "Ibs"
Item Code
AP-40-30-B-10-X-XX-XXXX	10	4	3	0.125	18	2*4	8.5*8.5	3/4173	7	25.08
AP-40-30-B-12-X-XX-XXXX	12	4	3	0.125	18	2*4	8.5*8.5	3/4173	7	28.74
AP-40-30-B-14-X-XX-XXXX	14	4	3	0.125	18	2*4	8.5*8.5	3/4173	7	32.37
AP-60-40-B-16-X-XX-XXXX	16	6	4	0.125	18	3*5	10*10	1364	9-10	54.77
AP-60-40-C-16-X-XX-XXXX	16	6	4	0.156	18	3*5	10*10	1364	9-10	66.12
AP-60-40-D-16-X-XX-XXXX	16	6	4	0.188	18	3*5	10*10	1364	9-10	77.5
AP-60-40-B-18-X-XX-XXXX	18	6	4	0.125	18	3*5	10*10	1364	9-10	60.24
AP-60-40-C-18-X-XX-XXXX	18	6	4	0.156	18	3*5	10*10	1364	9-10	72.96
AP-60-40-D-18-X-XX-XXXX	18	6	4	0.188	18	3*5	10*10	1364	9-10	85.28
AP-60-40-B-20-X-XX-XXXX	20	6	4	0.125	18	3*5	10*10	1364	9-10	64.78
AP-60-40-C-20-X-XX-XXXX	20	6	4	0.156	18	3*5	10*10	1364	9-10	78.62
AP-60-40-D-20-X-XX-XXXX	20	6	4	0.188	18	3*5	10*10	1364	9-10	92.49
AP-60-40-D-25-X-XX-XXXX	25	6	4	0.188	18	3*5	10*10	1364	9-10	112.95
AP-70-40-C-25-X-XX-XXXX	25	7	4	0.156	18	4*6	11*11	1364	10-11	114.05
AP-70-40-D-25-X-XX-XXXX	25	7	4	0.188	18	4*6	11*11	1364	10-11	134.27
AP-80-45-C-25-X-XX-XXXX	25	8	4.5	0.156	18	4*6	12*12	1364	11-12	126.7
AP-80-45-D-25-X-XX-XXXX	25	8	4.5	0.188	18	4*6	12*12	1364	11-12	149.76
AP-70-40-D-30-X-XX-XXXX	30	7	4	0.188	18	4*6	11*11	1364	10-11	156.62
AP-80-45-D-30-X-XX-XXXX	30	8	4.5	0.188	18	4*6	12*12	1364	11-12	175.27
AP-80-45-E-30-X-XX-XXXX	30	8	4.5	0.25	18	4*6	12*12	1364	11-12	228.18
AP-10-60-D-30-X-XX-XXXX	30	10	6	0.188	18	4*8	13*13	1484	13-15	225.6
AP-10-60-E-30-X-XX-XXXX	30	10	6	0.25	18	4*8	13*13	1484	13-15	291.8
AP-80-45-D-35-X-XX-XXXX	35	8	4.5	0.188	18	4*6	12*12	1364	11-12	197.11
AP-80-45-E-35-X-XX-XXXX	35	8	4.5	0.25	18	4*6	12*12	1364	11-12	257.08
AP-10-60-D-35-X-XX-XXXX	35	10	6	0.188	18	4*8	13*13	1484	13-15	252.94
AP-10-60-E-35-X-XX-XXXX	35	10	6	0.25	18	4*8	13*13	1484	13-15	327.96
AP-80-45-D-40-X-XX-XXXX	40	8	4.5	0.188	18	4*6	12*12	1364	11-12	220.97
AP-80-45-E-40-X-XX-XXXX	40	8	4.5	0.25	18	4*6	12*12	1364	11-12	288.65
AP-10-60-D-40-X-XX-XXXX	40	10	6	0.188	18	4*8	13*13	1484	13-15	282.54
AP-10-60-E-40-X-XX-XXXX	40	10	6	0.25	18	4*8	13*13	1484	13-15	367.14
