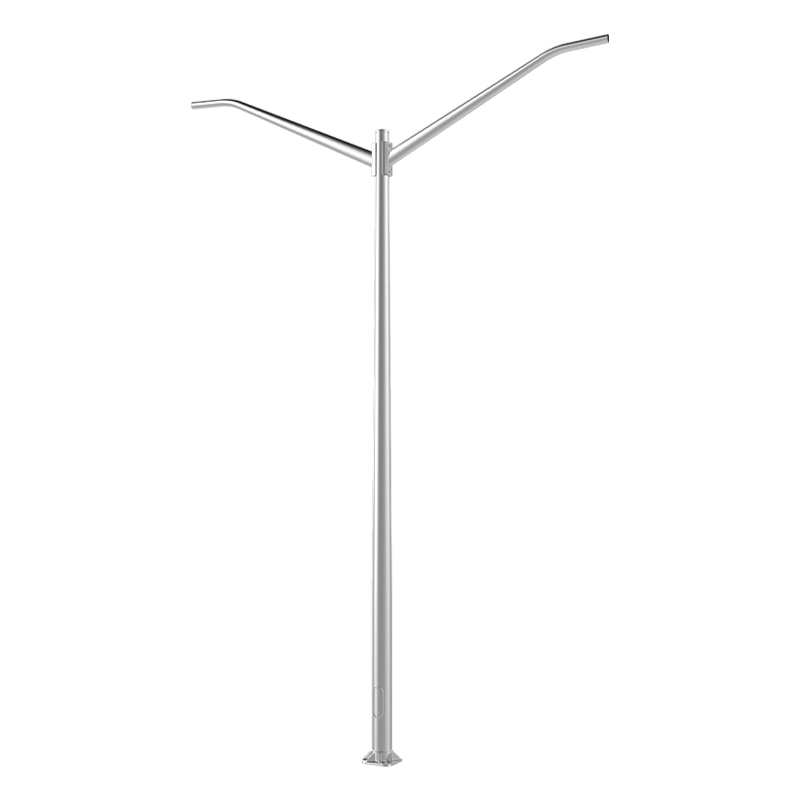

20ft-40ft Aluminum Conical Light Pole Duo Arms, Base Flange Mounting
  • 20ft-40ft Aluminum Conical Light Pole Duo Arms, Base Flange Mounting
  • 20ft-40ft Aluminum Conical Light Pole Duo Arms, Base Flange Mounting

20ft-40ft Aluminum Conical Light Pole Duo Arms, Base Flange Mounting

POLE

Confirming to ASTM B221, the Pole shaft and arm will be made of extruded AL6063. The whole shaft will be full-length T6 heat-treated after the base flange is welded.

HAND HOLE

Cast Aluminum reinforced hand hole with aluminum door cover, and a ground screw provision will be provided opposite the hand hole.

BASE PLATE

Cast aluminium base flange, made of A356-T6 Material.

BASE COVER

Round cast aluminium base cover, made of A356 Material.

TOP COVER

Round cast aluminium top cover, made of A356 Material.

Enquiry
Prev: 20ft-40ft Aluminum Conical Light Pole, Planted Mounting Next: 20ft-40ft Aluminum Conical Light Pole Duo Arms, Planted Mounting

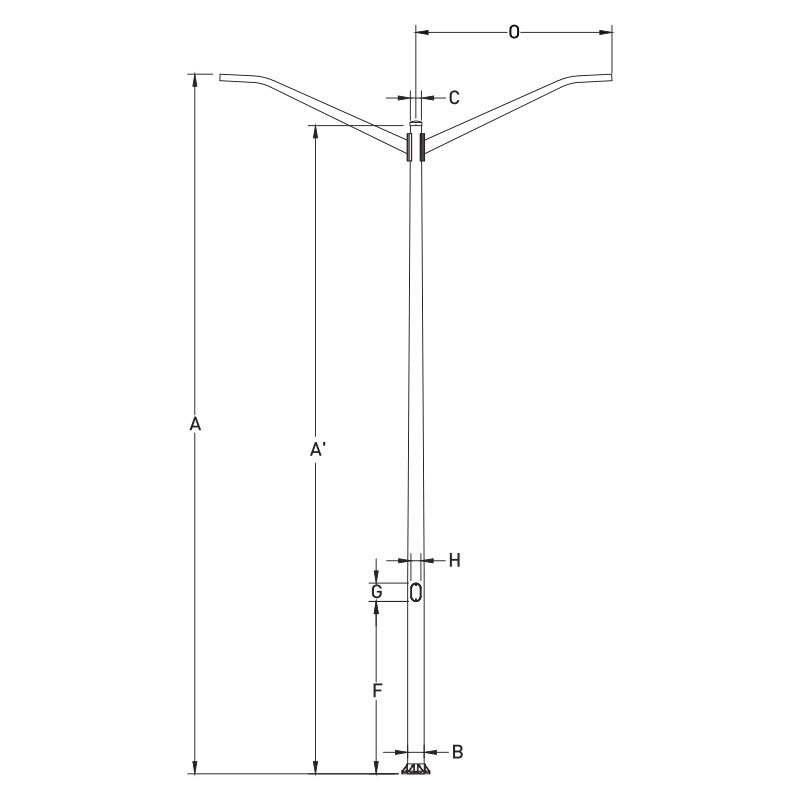

Item Code Mounting Height
"Ft"
A		 Arm
Length
"Ft"
O		 Pole
Height
"Ft"
A'		 Bottom
Dia
"In"
B		 Top
Dia
"In"
C		 Wall
Thickness
"In"		 Door
Heght
"In"
F		 Door
Size
"In"
H*G		 Base
Plate
"In"		 Bolt
Size
"In"		 Bolt
Circle
"In"		 Approx
Weight
"Ibs"
AP-60-45-C-19-X-XX-XX 20 4 19 6 4.5 0.156 18 3*5 10*10 1*36*4 9-10 93.63
AP-60-45-C-18-X-XX-XX 20 6 18 6 4.5 0.156 18 3*5 10*10 1*36*4 9-10 97.93
AP-60-45-C-17-X-XX-XX 20 8 17 6 4.5 0.156 18 3*5 10*10 1*36*4 9-10 105.01
AP-60-45-D-19-X-XX-XX 20 4 19 6 4.5 0.188 18 3*5 10*10 1*36*4 9-10 107.3
AP-60-45-D-18-X-XX-XX 20 6 18 6 4.5 0.188 18 3*5 10*10 1*36*4 9-10 110.69
AP-60-45-D-17-X-XX-XX 20 8 17 6 4.5 0.188 18 3*5 10*10 1*36*4 9-10 118.67
AP-60-45-C-24-X-XX-XX 25 4 24 6 4.5 0.156 18 3*5 10*10 1*36*4 9-10 110.72
AP-60-45-C-23-X-XX-XX 25 6 23 6 4.5 0.156 18 3*5 10*10 1*36*4 9-10 107.3
AP-60-45-C-22-X-XX-XX 25 8 22 6 4.5 0.156 18 3*5 10*10 1*36*4 9-10 119.82
AP-60-45-D-24-X-XX-XX 25 4 24 6 4.5 0.188 18 3*5 10*10 1*36*4 9-10 143.28
AP-60-45-D-23-X-XX-XX 25 6 23 6 4.5 0.188 18 3*5 10*10 1*36*4 9-10 129.83
AP-60-45-D-22-X-XX-XX 25 8 22 6 4.5 0.188 18 3*5 10*10 1*36*4 9-10 125.73
AP-70-45-C-24-X-XX-XX 25 4 24 7 4.5 0.156 18 4*6 11*11 1*36*4 10-11 126.02
AP-70-45-C-23-X-XX-XX 25 6 23 7 4.5 0.156 18 4*6 11*11 1*36*4 10-11 130.89
AP-70-45-C-22-X-XX-XX 25 8 22 7 4.5 0.156 18 4*6 11*11 1*36*4 10-11 136.25
AP-70-45-D-24-X-XX-XX 25 4 24 7 4.5 0.188 18 4*6 11*11 1*36*4 10-11 145.44
AP-70-45-D-23-X-XX-XX 25 6 23 7 4.5 0.188 18 4*6 11*11 1*36*4 10-11 149.52
AP-70-45-D-22-X-XX-XX 25 8 22 7 4.5 0.188 18 4*6 11*11 1*36*4 10-11 154.08
AP-80-45-D-29-X-XX-XX 30 4 29 8 4.5 0.188 18 4*6 12*12 1*36*4 11-12 184.87
AP-80-45-D-28-X-XX-XX 30 6 28 8 4.5 0.188 18 4*6 12*12 1*36*4 11-12 187.97
AP-80-45-D-27-X-XX-XX 30 8 27 8 4.5 0.188 18 4*6 12*12 1*36*4 11-12 191.67
AP-80-45-D-34-X-XX-XX 35 4 34 8 4.5 0.188 18 4*6 12*12 1*36*4 11-12 209.33
AP-80-45-D-33-X-XX-XX 35 6 33 8 4.5 0.188 18 4*6 12*12 1*36*4 11-12 216.54
AP-80-45-D-32-X-XX-XX 35 8 32 8 4.5 0.188 18 4*6 12*12 1*36*4 11-12 219.36
AP-80-45-E-34-X-XX-XX 35 4 34 8 4.5 0.25 18 4*6 12*12 1*36*4 11-12 268.13
AP-80-45-E-33-X-XX-XX 35 6 33 8 4.5 0.25 35 4*6 12*12 1*36*4 11-12 273.62
AP-80-45-E-32-X-XX-XX 35 8 32 8 4.5 0.25 18 4*6 12*12 1*36*4 11-12 275.49
AP-10-60-D-34-X-XX-XX 35 4 34 10 6 0.188 18 4*8 13*13 1*48*4 13-15 268.77
AP-10-60-D-33-X-XX-XX 35 6 33 10 6 0.188 18 4*8 13*13 1*48*4 13-15 269.87
AP-10-60-D-32-X-XX-XX 35 8 32 10 6 0.188 18 4*8 13*13 1*48*4 13-15 272.16
AP-80-45-D-38-X-XX-XX 40 6 38 8 4.5 0.188 18 4*6 12*12 1*36*4 11-12 238.23
AP-80-45-D-37-X-XX-XX 40 8 37 8 4.5 0.188 18 4*6 12*12 1*36*4 11-12 247.58
AP-80-45-E-38-X-XX-XX 40 6 38 8 4.5 0.25 18 4*6 12*12 1*36*4 11-12 303.49
AP-80-45-E-37-X-XX-XX 40 8 37 8 4.5 0.25 18 4*6 12*12 1*36*4 11-12 305.63
AP-10-60-D-38-X-XX-XX 40 6 38 10 6 0.188 18 4*8 13*13 1*48*4 13-15 298.13
AP-10-60-D-37-X-XX-XX 40 8 37 10 6 0.188 18 4*8 13*13 1*48*4 13-15 300.64
