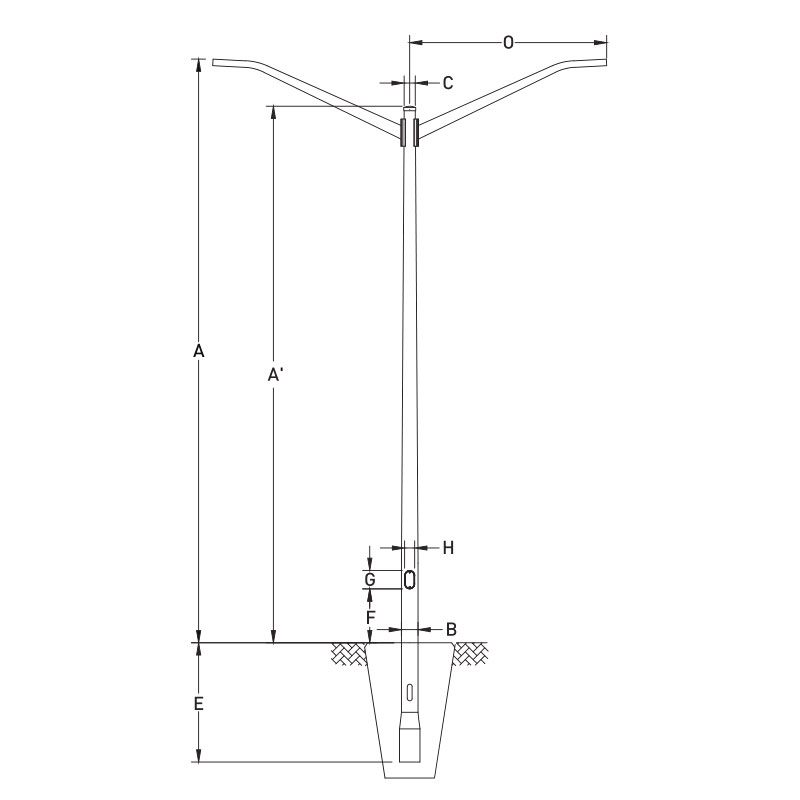

| Item Code | Mounting Height "Ft" A |
Arm Length "Ft" O |
Pole Height "Ft" A' |
Embed Length "Ft" E |
Bottom Dia "In" B |
Top Dia "In" C |
Wall Thickness "In" |
Door Heght "In" F |
Door Size "In" H*G |
Approx Weight "Ibs" |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
||
| AP-60-45-C-19-X-XX-XX | 20 | 4 | 19 | 4 | 6 | 4.5 | 0.156 | 18 | 3*5 | 100.65 |
| AP-60-45-C-18-X-XX-XX | 20 | 6 | 18 | 4 | 6 | 4.5 | 0.156 | 18 | 3*5 | 104.95 |
| AP-60-45-C-17-X-XX-XX | 20 | 8 | 17 | 4 | 6 | 4.5 | 0.156 | 18 | 3*5 | 112.03 |
| AP-60-45-D-19-X-XX-XX | 20 | 4 | 19 | 4 | 6 | 4.5 | 0.188 | 18 | 3*5 | 117.08 |
| AP-60-45-D-18-X-XX-XX | 20 | 6 | 18 | 4 | 6 | 4.5 | 0.188 | 18 | 3*5 | 120.48 |
| AP-60-45-D-17-X-XX-XX | 20 | 8 | 17 | 4 | 6 | 4.5 | 0.188 | 18 | 3*5 | 128.46 |
| AP-60-45-C-24-X-XX-XX | 25 | 4 | 24 | 4 | 6 | 4.5 | 0.156 | 18 | 3*5 | 117.74 |
| AP-60-45-C-23-X-XX-XX | 25 | 6 | 23 | 4 | 6 | 4.5 | 0.156 | 18 | 3*5 | 114.32 |
| AP-60-45-C-22-X-XX-XX | 25 | 8 | 22 | 4 | 6 | 4.5 | 0.156 | 18 | 3*5 | 126.84 |
| AP-60-45-D-24-X-XX-XX | 25 | 4 | 24 | 4 | 6 | 4.5 | 0.188 | 18 | 3*5 | 153.06 |
| AP-60-45-D-23-X-XX-XX | 25 | 6 | 23 | 4 | 6 | 4.5 | 0.188 | 18 | 3*5 | 139.61 |
| AP-60-45-D-22-X-XX-XX | 25 | 8 | 22 | 4 | 6 | 4.5 | 0.188 | 18 | 3*5 | 135.51 |
| AP-70-45-C-24-X-XX-XX | 25 | 4 | 24 | 5 | 7 | 4.5 | 0.156 | 18 | 4*6 | 135.85 |
| AP-70-45-C-23-X-XX-XX | 25 | 6 | 23 | 5 | 7 | 4.5 | 0.156 | 18 | 4*6 | 140.72 |
| AP-70-45-C-22-X-XX-XX | 25 | 8 | 22 | 5 | 7 | 4.5 | 0.156 | 18 | 4*6 | 146.08 |
| AP-70-45-D-24-X-XX-XX | 25 | 4 | 24 | 5 | 7 | 4.5 | 0.188 | 18 | 4*6 | 159.34 |
| AP-70-45-D-23-X-XX-XX | 25 | 6 | 23 | 5 | 7 | 4.5 | 0.188 | 18 | 4*6 | 163.42 |
| AP-70-45-D-22-X-XX-XX | 25 | 8 | 22 | 5 | 7 | 4.5 | 0.188 | 18 | 4*6 | 167.98 |
| AP-80-45-D-29-X-XX-XX | 30 | 4 | 29 | 5 | 8 | 4.5 | 0.188 | 18 | 4*6 | 203.55 |
| AP-80-45-D-28-X-XX-XX | 30 | 6 | 28 | 5 | 8 | 4.5 | 0.188 | 18 | 4*6 | 206.94 |
| AP-80-45-D-27-X-XX-XX | 30 | 8 | 27 | 5 | 8 | 4.5 | 0.188 | 18 | 4*6 | 210.65 |
| AP-80-45-D-34-X-XX-XX | 35 | 4 | 34 | 5 | 8 | 4.5 | 0.188 | 18 | 4*6 | 228.31 |
| AP-80-45-D-33-X-XX-XX | 35 | 6 | 33 | 5 | 8 | 4.5 | 0.188 | 18 | 4*6 | 235.52 |
| AP-80-45-D-32-X-XX-XX | 35 | 8 | 32 | 5 | 8 | 4.5 | 0.188 | 18 | 4*6 | 238.34 |
| AP-80-45-E-34-X-XX-XX | 35 | 4 | 34 | 5 | 8 | 4.5 | 0.25 | 18 | 4*6 | 296.05 |
| AP-80-45-E-33-X-XX-XX | 35 | 6 | 33 | 5 | 8 | 4.5 | 0.25 | 35 | 4*6 | 301.54 |
| AP-80-45-E-32-X-XX-XX | 35 | 8 | 32 | 5 | 8 | 4.5 | 0.25 | 18 | 4*6 | 303.42 |
| AP-10-60-D-34-X-XX-XX | 35 | 4 | 34 | 6 | 10 | 6 | 0.188 | 18 | 4*8 | 293.62 |
| AP-10-60-D-33-X-XX-XX | 35 | 6 | 33 | 6 | 10 | 6 | 0.188 | 18 | 4*8 | 294.72 |
| AP-10-60-D-32-X-XX-XX | 35 | 8 | 32 | 6 | 10 | 6 | 0.188 | 18 | 4*8 | 297.01 |
| AP-80-45-D-38-X-XX-XX | 40 | 6 | 38 | 6 | 8 | 4.5 | 0.188 | 18 | 4*6 | 262.75 |
| AP-80-45-D-37-X-XX-XX | 40 | 8 | 37 | 6 | 8 | 4.5 | 0.188 | 18 | 4*6 | 272.1 |
| AP-80-45-E-38-X-XX-XX | 40 | 6 | 38 | 6 | 8 | 4.5 | 0.25 | 18 | 4*6 | 338.82 |
| AP-80-45-E-37-X-XX-XX | 40 | 8 | 37 | 6 | 8 | 4.5 | 0.25 | 18 | 4*6 | 340.95 |
| AP-10-60-D-38-X-XX-XX | 40 | 6 | 38 | 6 | 10 | 6 | 0.188 | 18 | 4*8 | 332.98 |
| AP-10-60-D-37-X-XX-XX | 40 | 8 | 37 | 6 | 10 | 6 | 0.188 | 18 | 4*8 | 325.49 |
