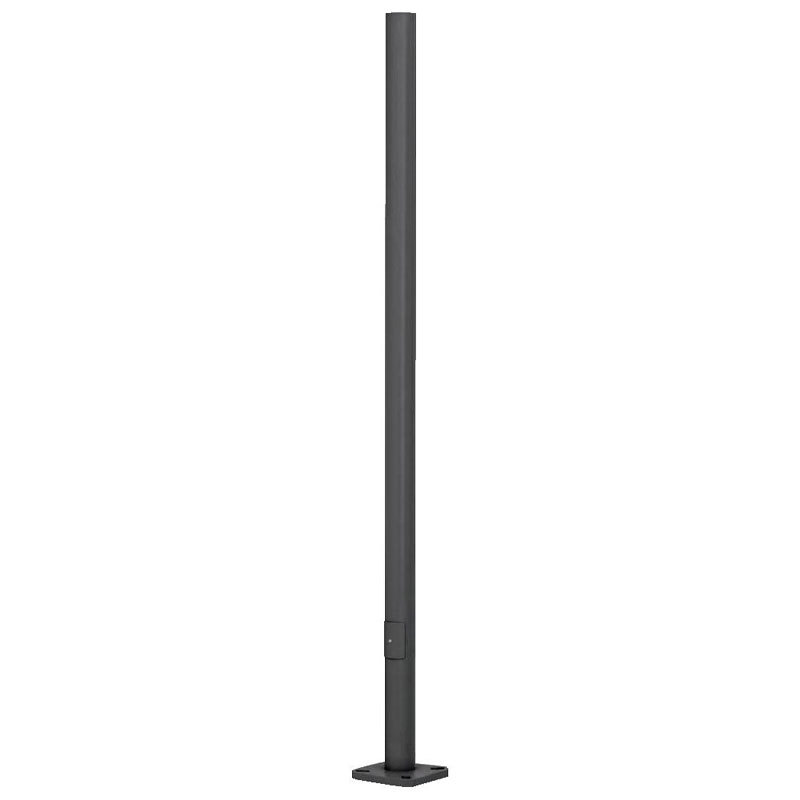

Round Straight Steel Light Pole

The round, straight steel pole is made of high-strength steel, with a stable and durable structure, suitable for all kinds of outdoor lighting scenes. The pole is equipped with cast-iron reinforced hand holes, which are convenient for cable routing and maintenance operations while enhancing the overall structural strength. The bottom design includes ground-covering screws and back rods, which not only improve the stability of installation but also effectively hide the fixing parts to maintain a neat and beautiful appearance. The pole uses a professional anchor kit, which includes four L-shaped galvanized steel anchor bolts that meet the ASTM F1554 55 standard. It has excellent corrosion resistance and mechanical properties, and a minimum yield strength of 55,000 PSI, ensuring long-term reliability in various environments. The kit provides different sizes of bolt options, which can be flexibly adapted to poles of different diameters to meet diverse installation needs.

Enquiry

Pole

Confirming to ASTM-A500 Grade C with a minimum yield strength of 50,000 PSI.
Wall thickness available in 11 gauge (.120″) or 7 gauge (.180″).

Pole Cap

A removable polycarbonate pole cap is included. Special color available on special request.

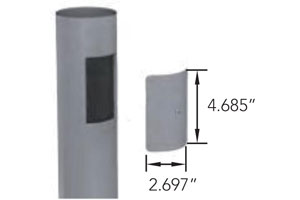

Hand Hole

Cast iron reinforced hand hole with cover, ground screw, and backbar.

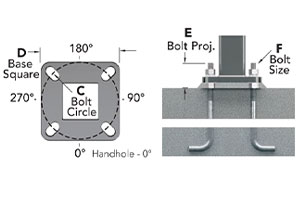

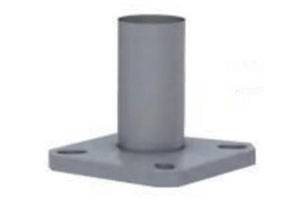

Base Plate

4-bolt steel plate base flange of fabricated carbon steel conforming to ASTM A36 with a minimum yield strength of 36,000 PSI, with a 2-piece base cover and attaching hardware.

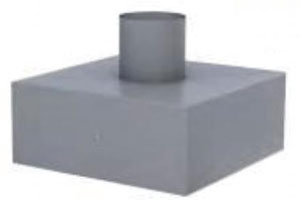

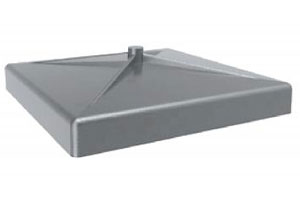

Base Cover

Poles are provided with a two-piece formed steel base cover that is easily assembled and fitted over the pole base. (order separately)

Anchorage

Anchorage kit will include four (4) L-shaped galvanized steel anchor bolts conforming to ASTM F1554 Grade 55 with a minimum yield strength of 55,000 PSI.

Different bolt size fits different pole sizes. (order separately)

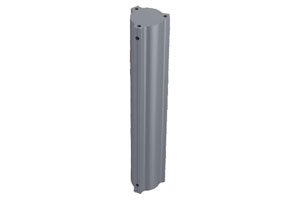

Vibration Damper

If determined necessary by Morelux, or if specified by the customer, a first and/or second mode vibration damper will be provided. (order separately)

Finish

Textured architectural bronze powder coated, galvanized, or powder coated over galvanized finish per customer specification.
Special color available per customer request.
