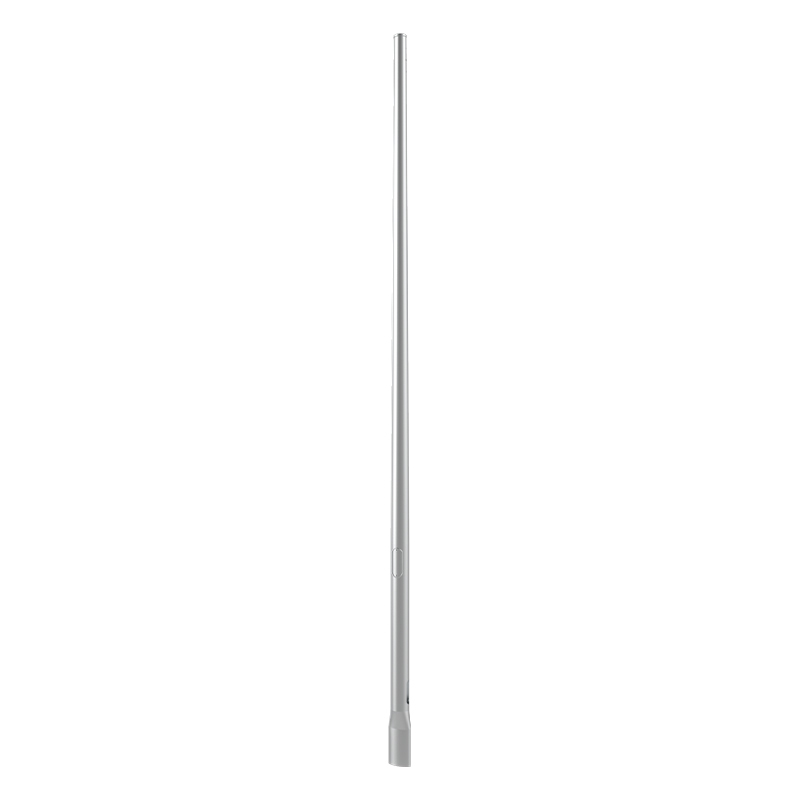

10ft-40ft Aluminum Conical Light Pole With Top Cover, Planted Mounting

POLE

Confirming to ASTM B221, the Pole shaft will be made of extruded AL6063.
The whole shaft will be full-length T6 heat-treated after the base flange is welded.

HAND HOLE

Cast Aluminum reinforced hand hole with aluminum door cover, and a ground screw provision will be provided opposite the hand hole.

EMBED DETAIL

Wire access will be provided 24'' above the pole bottom, with the Pole bottom flattening to prevent the pole shaft from rotating.

TOP COVER

Round cast aluminium top cover, made of A356 Material.

Enquiry

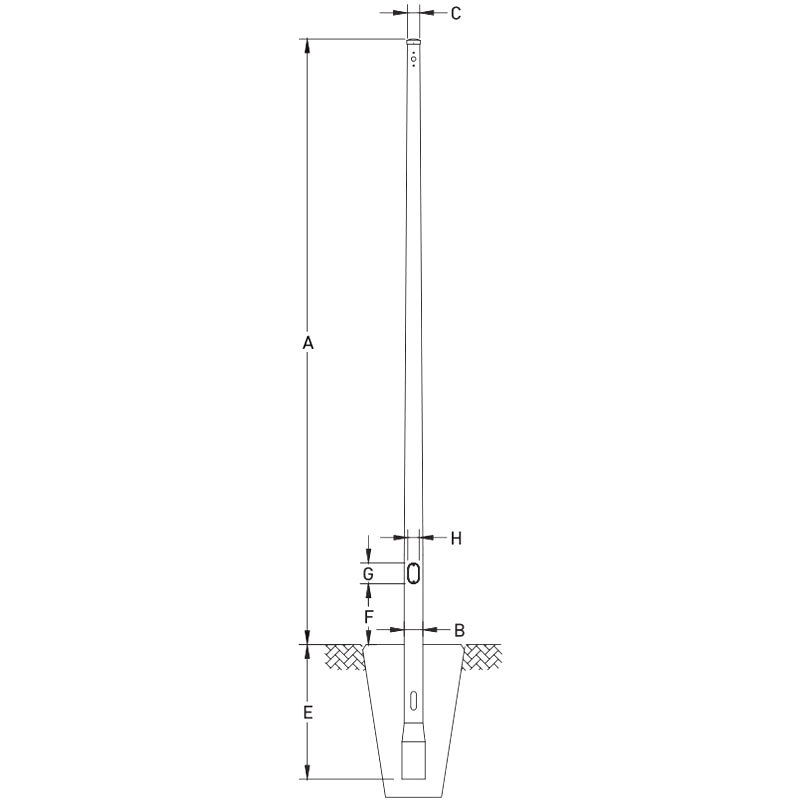

Item Code	Mounting Height "Ft" A	Embed Length "Ft" E	Bottom Dia "In" B	Top Dia "In" C	Wall Thickness "In"	Door Heght "In" F	Door Size "In" H*G	Approx Weight "Ibs"
Item Code
AP-40-30-B-10-X-XX-XXXX	10	3	4	3	0.125	18	2*4	28.85
AP-40-30-B-12-X-XX-XXXX	12	3	4	3	0.125	18	2*4	31.89
AP-40-30-B-14-X-XX-XXXX	14	3	4	3	0.125	18	2*4	35.53
AP-60-40-B-16-X-XX-XXXX	16	4	6	4	0.125	18	3*5	58.03
AP-60-40-C-16-X-XX-XXXX	16	4	6	4	0.156	18	3*5	71.94
AP-60-40-D-16-X-XX-XXXX	16	4	0	4	0.188	18	3*5	85.83
AP-60-40-B-18-X-XX-XXXX	18	4	0	4	0.125	18	3*5	63.5
AP-60-40-C-18-X-XX-XXXX	18	4	6	4	0.156	18	3*5	78.78
AP-60-40-D-18-X-XX-XXXX	18	4	6	4	0.188	18	3*5	94.03
AP-60-40-B-20-X-XX-XXXX	20	4	6	4	0.125	18	3*5	69.01
AP-60-40-C-20-X-XX-XXXX	20	4	6	4	0.156	18	3*5	85.63
AP-60-40-D-20-X-XX-XXXX	20	4	6	4	0.188	18	3*5	102.28
AP-60-40-D-25-X-XX-XXXX	25	4	6	4	0.188	18	3*5	122.74
AP-70-40-C-25-X-XX-XXXX	25	5	7	4	0.156	18	4*6	123.84
AP-70-40-D-25-X-XX-XXXX	25	5	7	4	0.188	18	4*6	148.11
AP-80-45-C-25-X-XX-XXXX	25	5	8	4.5	0.156	18	4*6	140.99
AP-80-45-D-25-X-XX-XXXX	25	5	8	4.5	0.188	18	4*6	168.68
AP-70-40-D-30-X-XX-XXXX	30	5	1	4	0.188	18	4*6	170.47
AP-80-45-D-30-X-XX-XXXX	30	5	8	4.5	0.188	18	4*6	194.18
AP-80-45-E-30-X-XX-XXXX	30	L	8	4.5	0.25	18	4*6	256.02
AP-10-60-D-30-X-XX-XXXX	30	6	10	6	0.188	18	4*8	250.36
AP-10-60-E-30-X-XX-XXXX	30	6	10	6	0.25	18	4*8	330.03
AP-80-45-D-35-X-XX-XXXX	35	5	8	4.5	0.188	18	4*6	216.01
AP-80-45-E-35-X-XX-XXXX	35	6	8	4.5	0.25	18	4*6	284.93
AP-10-60-D-35-X-XX-XXXX	35	6	10	6	0.188	18	4*8	277.69
AP-10-60-E-35-X-XX-XXXX	35	5	10	6	0.25	18	4*8	366.19
AP-80-45-D-40-X-XX-XXXX	40	5	8	4.5	0.188	18	4*6	239.86
AP-80-45-E-40-X-XX-XXXX	40	0	8	4.5	0.25	18	4*6	315.61
AP-10-60-D-40-X-XX-XXXX	40	6	10	6	0.188	18	4*8	307.3
AP-10-60-E-40-X-XX-XXXX	40	6	10	6	0.25	18	4*8	405.36
