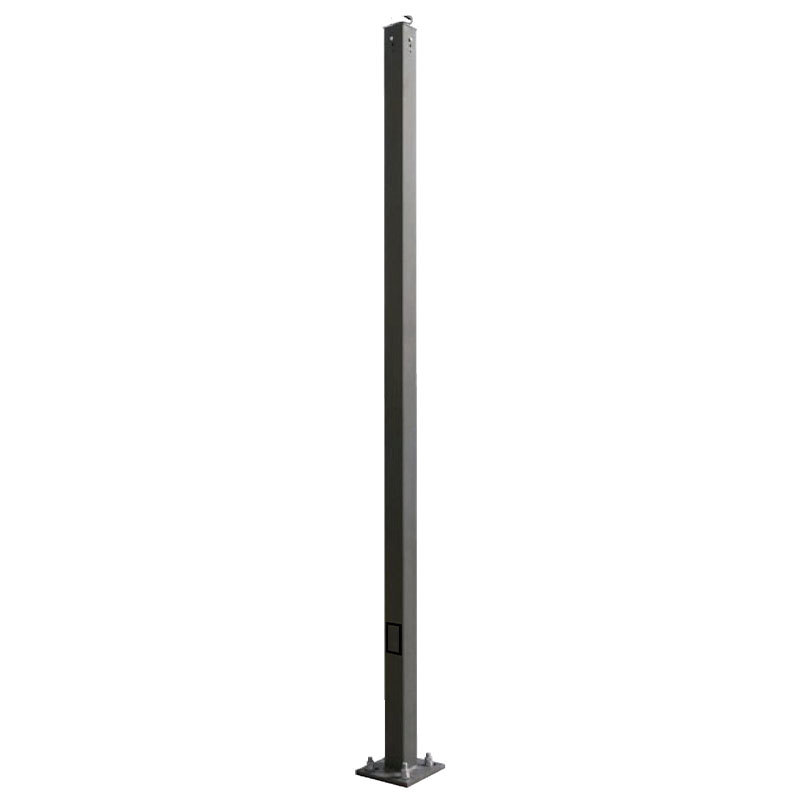

Square Straight Steel Light Pole

This square, straight steel light pole is made of high-strength steel, with a sturdy and durable structure and simple and neat lines, which perfectly meet the needs of modern urban landscape lighting. The top of the light pole is equipped with a removable polycarbonate pole cap, which has excellent impact resistance and weather resistance, can effectively protect the internal circuit, and is convenient for later maintenance and repair. The light pole adopts an innovative two-piece molded steel base cover design, which can be firmly fixed on the pole base with simple assembly during installation. This modular structure not only greatly improves construction efficiency but also ensures the stability and aesthetics of the overall structure. The base cover fits tightly with the pole body, which not only effectively protects the internal structure but also presents a neat and unified visual effect.

Enquiry

Pole

Confirming to ASTM-A500 Grade C with a minimum yield strength of 50,000 PSI.
Wall thickness available in 11 gauge (.120″) or 7 gauge (.180″).

Pole Cap

A removable polycarbonate pole cap is included. Special color available on special request.

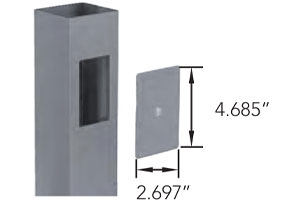

Hand Hole

Cast iron reinforced hand hole with cover, ground screw, and backbar.

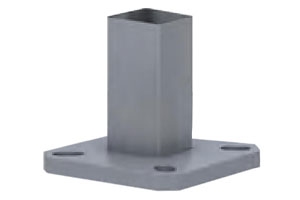

Base Plate

4-bolt steel plate base flange of fabricated carbon steel conforming to ASTM A36 with a minimum yield strength of 36,000 PSI, with a 2-piece base cover and attaching hardware.

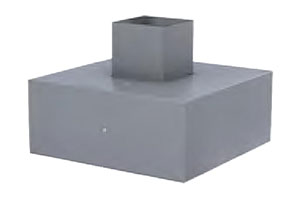

Base Cover

Poles are provided with a two-piece formed steel base cover that is easily assembled and fitted over the pole base. (order separately)

Anchorage

Anchorage kit will include four (4) L-shaped galvanized steel anchor bolts conforming to ASTM F1554 Grade 55 with a minimum yield strength of 55,000 PSI.

Different bolt size fits different pole sizes. (order separately)

Vibration Damper

If determined necessary by Morelux, or if specified by the customer, a first and/or second mode vibration damper will be provided. (order separately)

Finish

Textured architectural bronze powder coated, galvanized, or powder coated over galvanized finish per customer specification.
Special color available per customer request.
