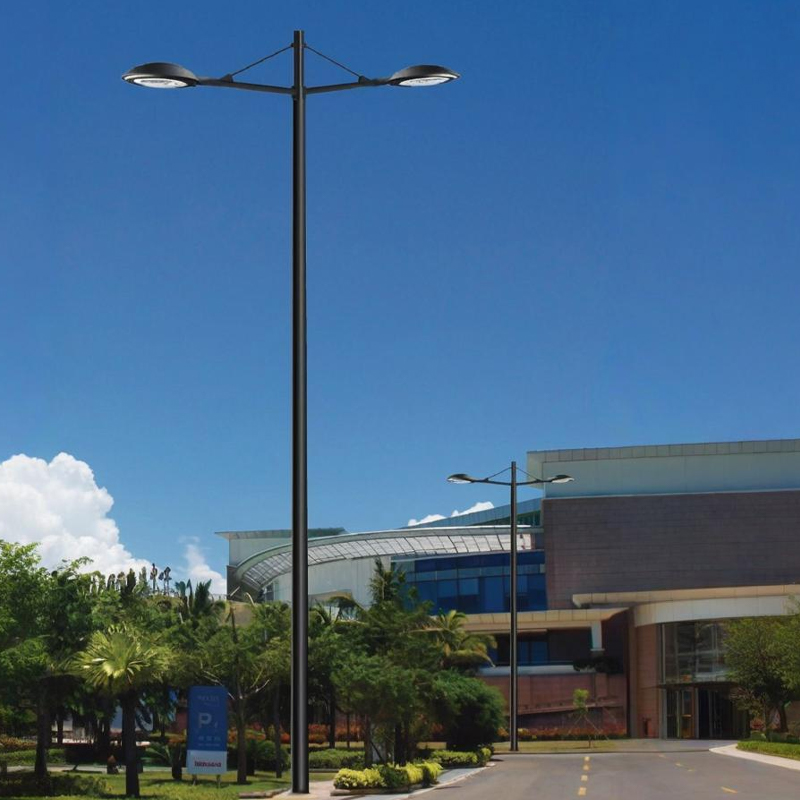

SAHARA Aluminum Conical Outdoor Street Roadway Pole
  • SAHARA Aluminum Conical Outdoor Street Roadway Pole

SAHARA Aluminum Conical Outdoor Street Roadway Pole

Bottom Diameter: φ152-203mm
Materials: Aluminum 6063-T6
Wall Thickness: 3.2-4.0mm
Surface Finish: Satin Brushed, Anodizing, Powder Coating

Enquiry
Prev: NILE Double Arm Aluminum Conical Roadway Pole Next: EFFIEL Aluminum Conical Roadway Pole

Flange Mount

Item No.
Height (m) Bottom Dia (mm) Top Dia (mm) Door Dimension (mm) Door Position (mm) Flange Dimension (mm) Bolt Circle (mm) Bolt Size
RIP15289A-60-BS-FG 6 152 89 100x400 500 320x320 250 4xM20
RIP16595A-80-BS-FG 8 165 95 100x400 500 400x400 300 4xM24
RIP178114A-100-BS-FG 10 178 114 100x400 500 400x400 300 4xM24
RIP203140A-120-BS-FG 12 203 140 100x400 500 400x400 300 4xM24
