Aluminium Traffic Poles

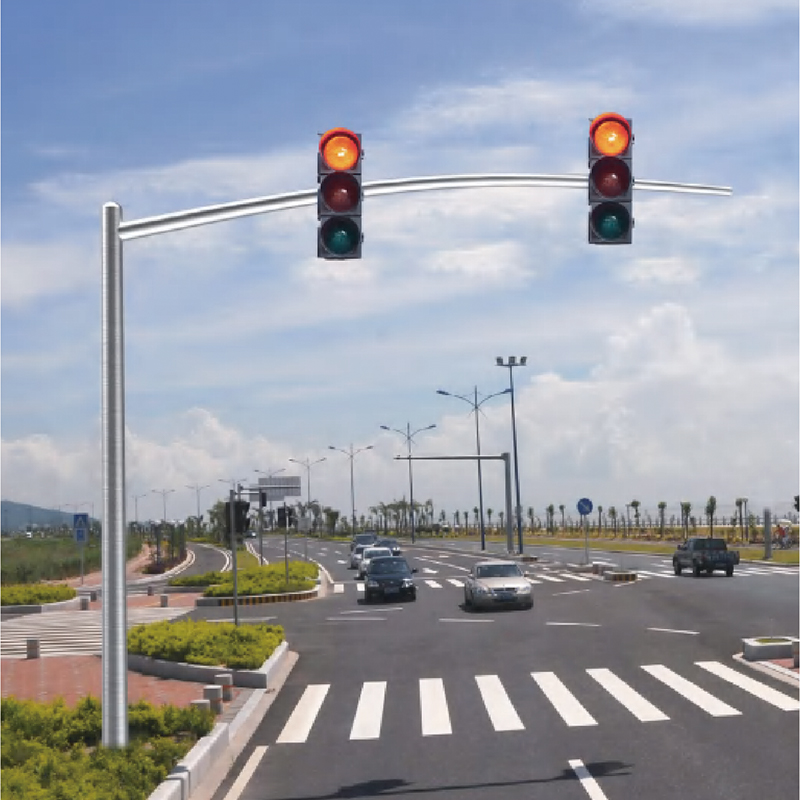

Aluminum Traffic Pole with Single Arm
  • Aluminum Traffic Pole with Single Arm

Aluminum Traffic Pole with Single Arm

Bottom Diameter: φ230mm
Materials: Aluminum 6063-T6
Wall Thickness: 5.0mm
Surface Finish: Satin Brushed, Anodizing, Powder Coating

Enquiry
Prev: Aluminum Belisha Beacon Pole Next: Aluminum Traffic Light Pole with Arm

Flange Mount

Item No.
Height (m) Bottom Dia (mm) Top Dia (mm) Arm Length
(mm)		 Door Dimension (mm) Door Position (mm) Flange Dimension (mm) Bolt Circle (mm) Bolt Size
TBP230152-55-BS-FG 5.5 230 152 4000 85x500 800 260x260 200 4xM16
TBP230178-55-BS-FG 5.5 230 178 7000 85x500 800 260x260 200 4xM16
