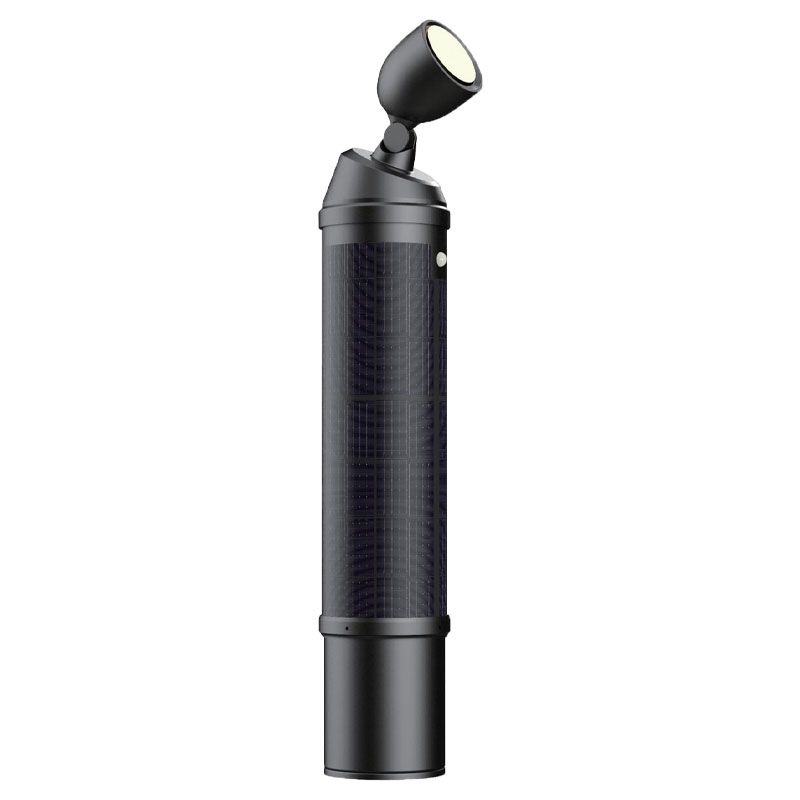

ALBA Flexible HJT Solar Light Pole

ALBA Flexible HJT Solar Light Pole

The Flexible HJT ALBA Solar Pole adopts an integrated innovative design with a total height of 1000 mm, perfectly integrating cutting-edge flexible photovoltaic technology with a high-strength aluminum alloy structure, providing a new intelligent, efficient, and environmentally friendly choice for modern outdoor lighting.

Core configuration highlights
1. Light pole system
Made of aviation-grade 6063-T6 aluminum alloy
The surface is treated with metal powder spraying and has excellent weather resistance
ф178 mm diameter with 4 mm thickened tube wall design
Wind resistance level reaches 12, adapting to various harsh climates
Provide 10-year ultra-long quality assurance

2. Lighting system
Equipped with 10-watt high-efficiency LED lamps, with a light efficiency of 120 lumens/watt
50,000 hours of ultra-long service life, 5-year warranty

3. Energy system
Equipped with flexible HJT solar panels, efficiency > 24%
Innovative curved surface fitting design, perfectly matching the arc of the lamp pole
Using a 3.7V/8Ah ternary lithium battery pack
Supports > 3 days of continuous lighting when fully charged
The entire energy system provides a 10-year warranty

Enquiry
Specifications
Total Height 1000MM
BOLLARD
Pole Material Aluminum 6063-T6
Surface Treatment Metal powder spraying
Pole Diameter φ178MM
Wall Thickness 4MM
Warranty 10 Years
LED LIGHT
Luminaire Power 10w
Efficacy 120LM/W
Lumen Output 1200LM
LED Chips Lumileds 3030
Colour Temperature 3000K/4000K/5000K
Ingress Protection Rate IP65
LED Lifespan 50.000Hrs
Light Distribution 120°
Operating Temperature -30~50C
Warranty 5 Years
SOLAR MODULE
Module Qty 1 Module
Type Flexible HJT
Power 5V.58W
Efficiency >24%
Dimensions φ178x650MM
Warranty 10 Years
BATTERY
Type NCM Lithium Battery
Capacity 3.7V,8Ah
Cycle Life 500 Times
Charging Time Continuous 2 Sunny Days (Average 5Hrs Per Day)
Discharging Time >3 Days
