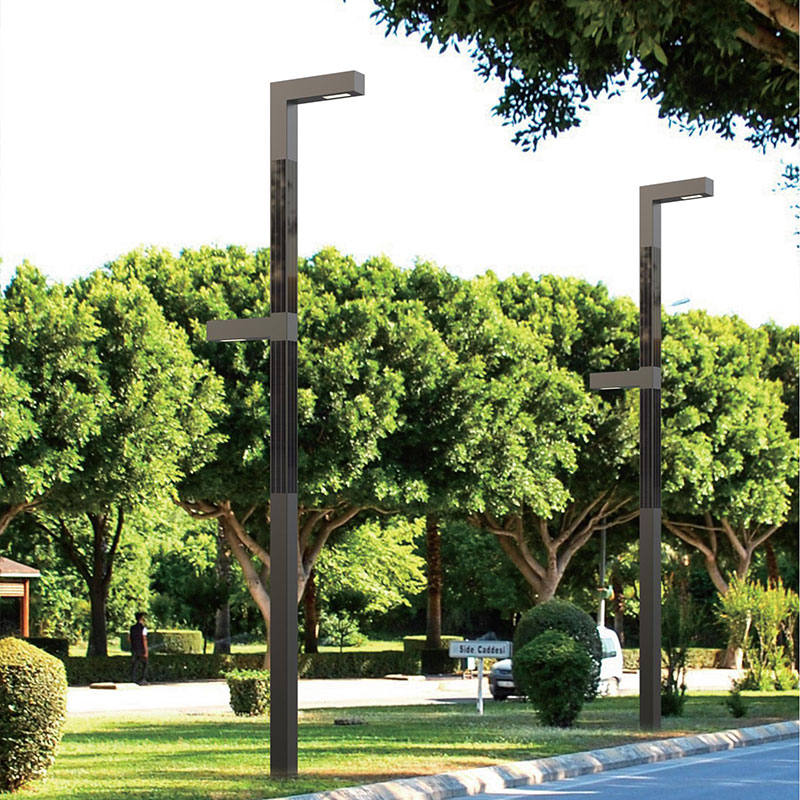

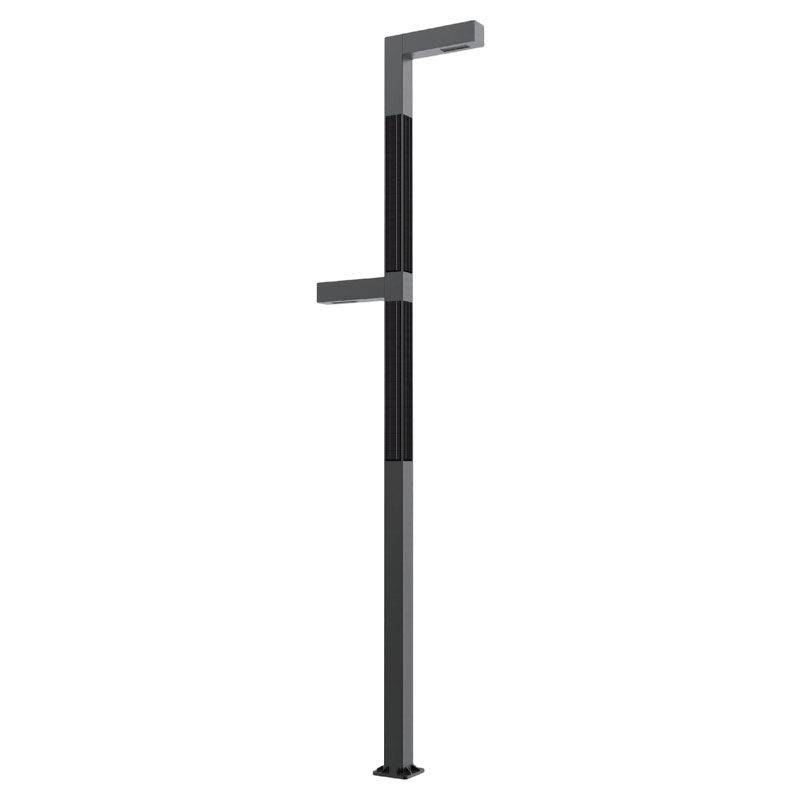

EMDEN Aluminum Metal powder spraying Solar Light Pole

The total height of the Aluminum Metal powder-spraying EMDEN Solar Pole is 6000 mm, equipped with 8 172×172mm high-efficiency monocrystalline silicon modules and a 25.6V/60Ah lithium iron phosphate energy storage system, equipped with dual 20W ultra-high brightness LED lighting units.

Core configuration
1. Light pole system
Material: 6063-T6 aviation-grade aluminum alloy
Surface treatment: metal powder spraying
Size: 172×172mm square design
Wall thickness: 3mm high-strength structure
Wind resistance level: 12 (70m/s)
Seismic resistance level: 8
Warranty: 10 years

2. LED lighting system
Configuration: dual light source design (20W×2)
Light efficiency: 180 lumens/W
Total brightness: 7200 lumens
Chip: Lumileds 3030
Color temperature: 3000K/4000K/5000K three-speed adjustable
Protection: IP65 waterproof and dustproof
Lifespan: 50,000 hours
Light distribution: T2-T5 multi-mode light distribution
Working temperature: -30℃~50℃
Warranty: 5 years

3. Energy storage system
Battery type: lithium iron phosphate
Configuration: dual battery pack (12.8V/30Ah×2)
Total capacity: 25.6V/60Ah (1.54kWh)
Cycle life: 2000 times
Charging time: 2 sunny days (average 6h per day)
Endurance: 3 cloudy days (average 12h per day)
