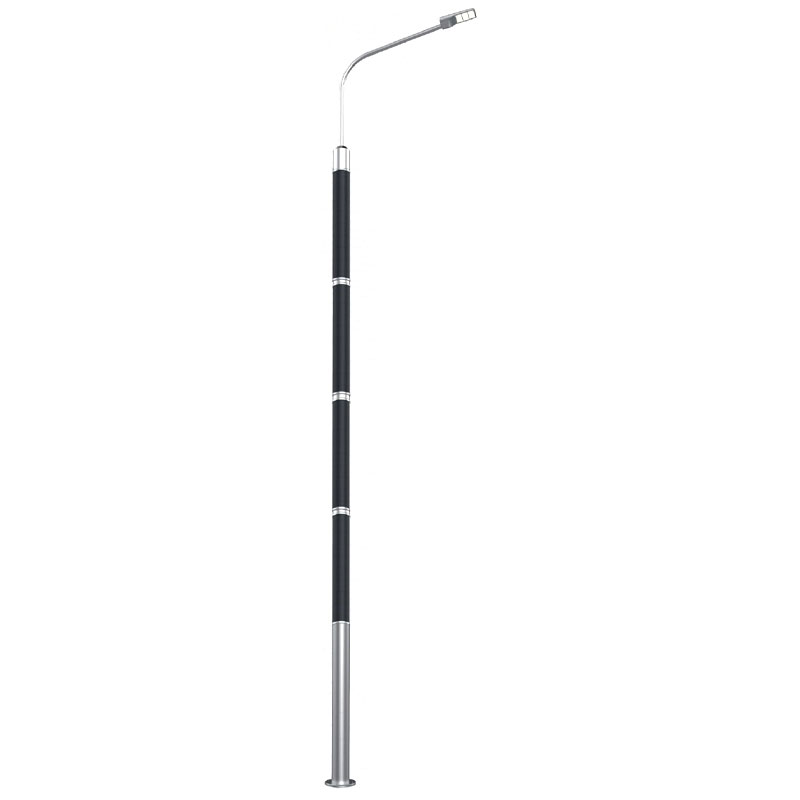

FORRES Cost-effective Flexible HJT Solar Light Pole

FORRES Cost-effective Flexible HJT Solar Light Pole

The Cost-effective Flexible HJT FORRES Solar Pole adopts an innovative design concept, which greatly reduces the cost of use while ensuring performance. The product is equipped with high-conversion flexible solar components and intelligent control systems to achieve optimal energy utilization efficiency. It is an ideal lighting solution for municipal roads, residential parks, and other places.

Core advantages
High cost performance: save more than 30% of the overall cost compared with traditional solar street lights
Flexible solar panels: bendable design adapts to various installation environments, with a conversion efficiency of 24%
Intelligent light control system: automatically adjusts brightness according to ambient light, with an energy saving rate of up to 40%
Modular design: easy maintenance and component replacement, reducing later operation and maintenance costs

Lighting system:
Optional 90W/120W dual power mode
Up to 21,600 lumens output
50,000 hours of ultra-long life
Intelligent dimming function

Energy system:
480-560W flexible solar array
156Ah large-capacity energy storage
Supports power supply for 3 consecutive rainy days

Enquiry
Specifications
Total Height 9000/10000MM
POLE
Pole Material Aluminum6063-T6
Surface Treatment Metal powder spraying
Pole Diameter φ203MM/230MM
Wall Thickness 4.8MM/5MM
Warranty 10 Years
LED LIGHT
Luminaire Power 90w/120W
Efficacy 180LM/W
Lumen Output 16200LM/21600LM
LED Chips Lumileds 3030
Colour Temperature 3000K/4000K/5000K
Ingress Protection Rate IP65
LED Lifespan 50,000Hrs
Light Distribution T2,T3,T4,T5
Operating Temperature -30~50C
Warranty 5 Years
SOLAR MODULE
Module Qty 4Modules
Type Flexible HJT
Power 18V/36V,120W/140Wx4
Efficiency >24%
Dimensions φ203x5500MM/Φ230x5500MM
Warranty 10 Years
BATTERY
Type LiFePO4
Capacity 12.8V 52AH*3PCS/25.6V 52AH*2PCS
Cycle Life 2000 Times
Charging Time Continuous 2 Sunny Days (Average 6Hrs Per Day)
Discharging Time Continuous 3 Cloudy Days (Average 12Hrs Per Day)
