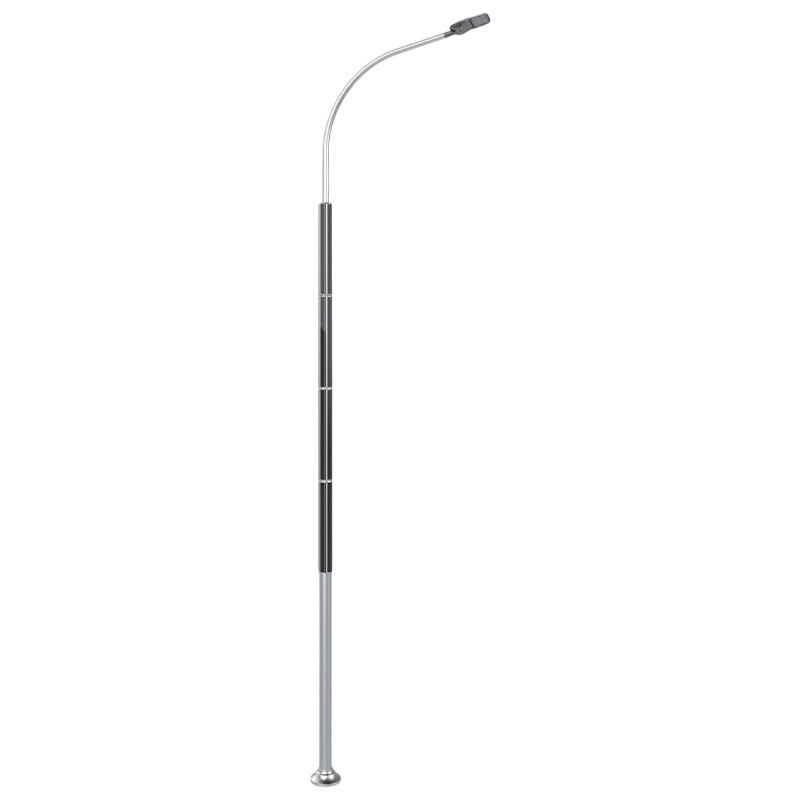

Aluminum Monocrystalline silicon IMOLA Solar Poles use 6063-T6 high-strength aluminum alloy and high-efficiency monocrystalline silicon solar modules, combined with intelligent energy management systems to create high-brightness, long-life, maintenance-free solar lighting systems. Suitable for urban roads, highways, industrial parks, port terminals, and other places that require high-reliability lighting.
1. Light pole structure
Total height: 10,000 mm (10 meters), ultra-high design, covering a wider lighting range
Material: 6063-T6 aviation-grade aluminum alloy, lightweight and corrosion-resistant
Surface treatment: metal powder spraying, salt spray resistance, UV resistance, and adaptability to harsh climates
Diameter/wall thickness: φ114-178 mm (tapered gradient), 4.8 mm thick, wind and earthquake resistance
Warranty: 10 years, durable
2. LED lighting system
Power: 90 watts, high efficiency, and energy saving
Light efficiency: 180 lumens/watt, brightness up to 16,200 lumens
Chip: Lumileds 3030, high color rendering index, soft light
Color temperature: 3000K (warm white)/4000K (natural white)/5000K (cold white), optional
Protection level: IP65, dustproof and waterproof, no fear of rainstorms and sandstorms
Lifespan: 50,000 hours, ultra-long service life
Light distribution: T2, T3, T4, T5 multiple lighting schemes, precise lighting
Working temperature: -30°C~50°C, stable operation in severe cold and heat
Warranty: 5 years
3. Solar power supply system
Component configuration: 24 high-efficiency monocrystalline silicon solar panels, conversion efficiency > 24%
Total power: 18V/22W×24=528W, efficient charging in low-light environment
Size: 246×6040 mm, maximized light absorption area
Battery type: lithium iron phosphate (LiFePO4), safe and stable, long cycle life
Capacity: 12.8V/52Ah×3=156Ah, large-capacity energy storage, longer battery life
Cycle life: 2000 cycles, long-lasting and durable
Charging time: 2 sunny days (average 6 hours of sunlight per day)
Battery life: supports 3 consecutive cloudy days (average 12 hours per day), lighting
Warranty: 10 years
