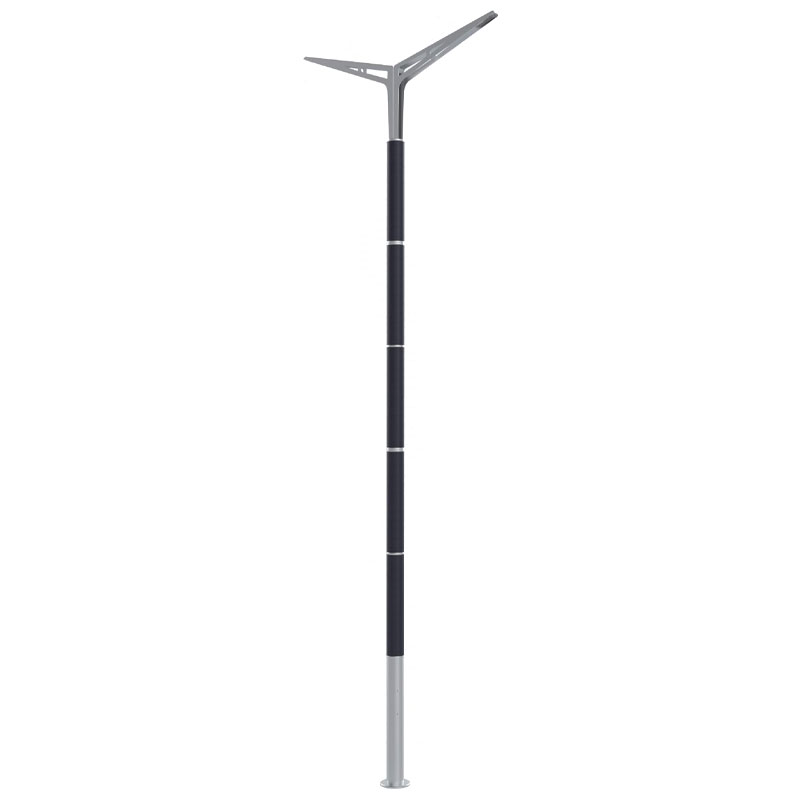

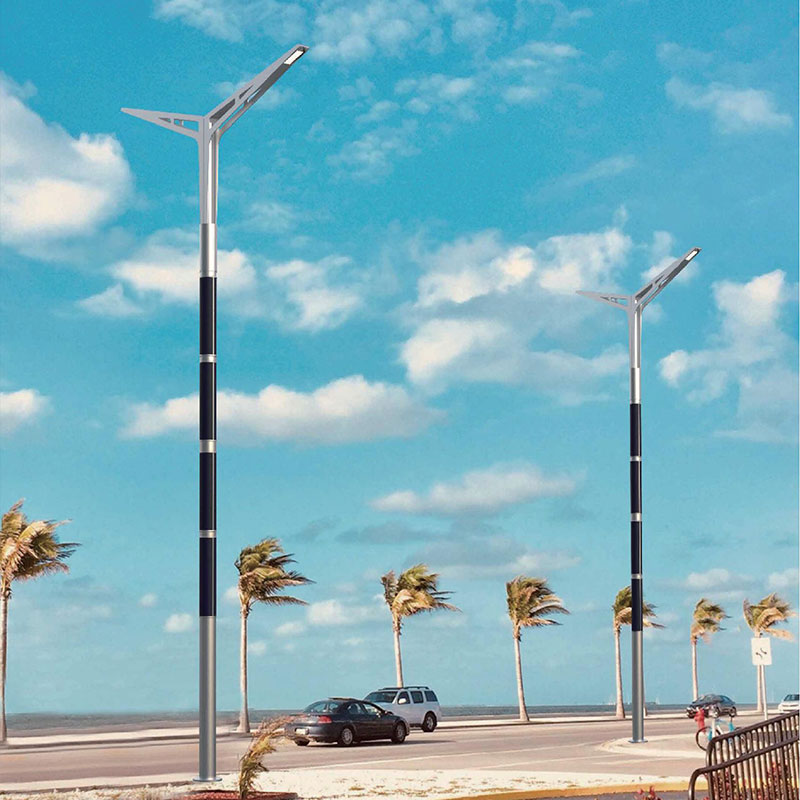

The Aluminum Flexible HJT Double lamp head RARON Solar Pole is made of 6063-T6 aluminum alloy, equipped with dual LED lamp heads and a high-efficiency flexible solar energy system. It is designed for scenes that require wide-area high-brightness lighting, such as main roads, large squares, and highways. Its 10-meter ultra-high lamp pole + dual lamp head configuration can provide 16,000~21,600 lumens of ultra-strong light. At the same time, it is equipped with a large-capacity lithium iron phosphate battery to ensure stable lighting on continuous rainy days. It is a perfect combination of urban smart lighting and green energy.
Core Specifications
1. Light Pole Structure
Total height: 10,000 mm (10 meters), ultra-high design, covering a wider lighting range
Material: 6063-T6 aviation-grade aluminum alloy, ultra-high strength, wind, and earthquake resistance
Surface treatment: metal powder spraying, corrosion resistance, UV resistance, adaptable to various harsh climates
Diameter/wall thickness: φ203 mm/4.8 mm or φ230 mm/5 mm (optional), super strong structural stability
Warranty: 10 years, durable
2. LED lighting system (dual lamp head)
Power: 45W×2 (standard version) or 60W×2 (high brightness version), flexible adaptation to different scenes
Light efficiency: 180 lumens/watt, ultra-high brightness
Lumen output: 8100 lumens×2 (45W version) or 10800 lumens×2 (60W version), total brightness up to 21600 lumens
Chip: Lumileds 3030, high color rendering, uniform, and soft light
Color temperature: 3000K (warm white)/4000K (natural white)/5000K (cold white), optional, meet different needs
Light distribution: T2, T3, T4, T5 multiple lighting schemes, accurately cover the lighting area
Working temperature: -30℃~50℃, stable operation in severe cold and heat
Warranty: 5 years
3. Solar power supply system
Component configuration: 5 flexible heterojunction (HJT) solar panels, ultra-high efficiency > 24%
Total power: 18V/36V, 120W/140W×5=600W/700W, still efficient charging in weak light environment
Size: φ203×6800 mm or φ230×6800 mm (optional), flexible and bendable, suitable for complex installation environments
Battery type: lithium iron phosphate (LiFePO4), safe and stable, long cycle life
Capacity:
12.8V/52Ah×3 pieces = 156Ah (low voltage and large capacity solution)
25.6V/52Ah×2 pieces = 104Ah (high voltage and high efficiency solution)
