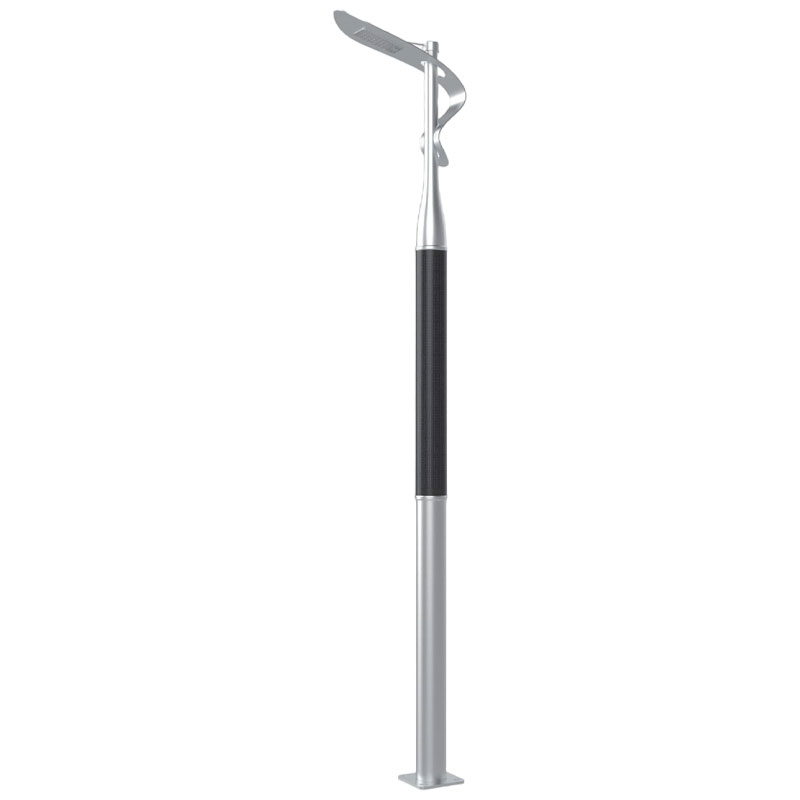

ELDA Flexible HJT Aluminum Solar Light Pole

The total height of the Flexible HJT Aluminum ELDA Solar Pole is 4000 mm, equipped with φ165x1330mm flexible heterojunction solar panels and 12.8V/30Ah lithium iron phosphate battery packs, and equipped with a 20W ultra-high brightness LED lighting system.

Core configuration parameters
1. Light pole system
Material: 6063-T6 aviation-grade aluminum alloy
Surface treatment: military-grade metal powder spraying
Diameter: Ф165mm integrated design
Wall thickness: 3.5mm high-strength tube wall
Wind resistance level: Level 12 (can withstand 70m/s wind speed)
Warranty: 10-year ultra-long warranty

2. LED lighting system
Power: 20W
Light efficiency: 180 lumens/watt
Brightness: 3600 lumens
Chip: Lumileds 3030 imported chip
Color temperature: three levels optional (3000K warm light/4000K natural light/5000K cold light)
Protection level: IP65 all-weather protection
Lifespan: 50,000 hours (about 13.7 years)
Light distribution: T2-T5 multi-mode light distribution
Working temperature: -30℃~50℃ extremely wide temperature range
Warranty: 5 years

3. Solar power supply system
Component type: flexible heterojunction battery (conversion efficiency>24%)
Power: 18V/100W (daily power generation ≥600Wh)
Size: φ165x1330mm (large lighting area)
Warranty: 10 years
