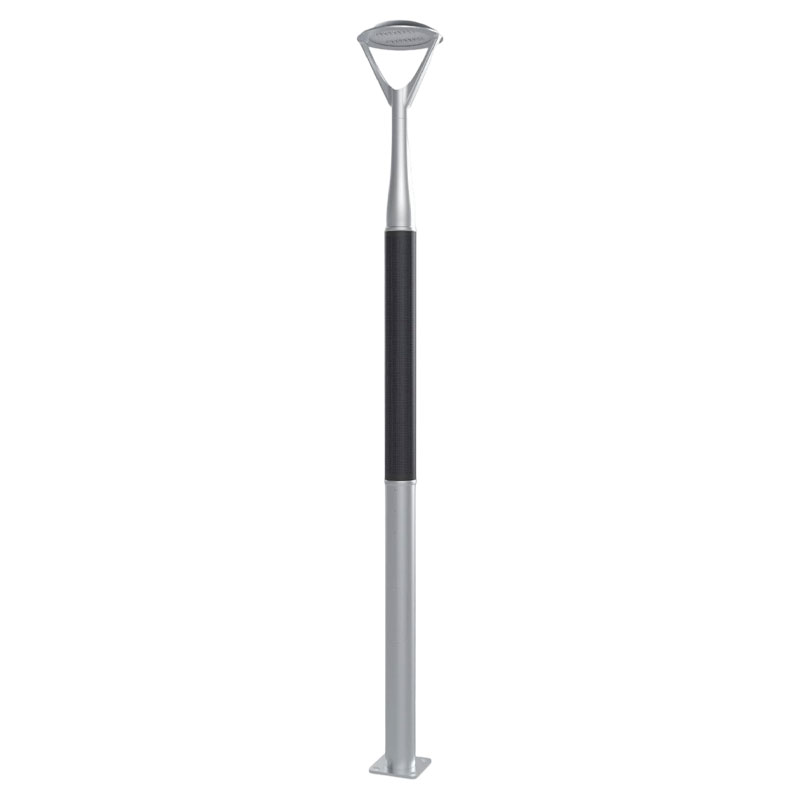

PAU Aluminum Flexible HJT Metal powder spraying Solar Light Pole

The Aluminum Flexible HJT Metal powder spraying PAU Solar Pole is made of 6063-T6 aluminum alloy, with a total height of 4000 mm, equipped with φ165x1330mm flexible HJT solar panels and 12.8V/30Ah lithium iron phosphate battery pack, equipped with 20W ultra-high brightness LED lighting system.

Core configuration parameters
1. Light pole system
Material: 6063-T6 aviation-grade aluminum alloy
Surface treatment: metal powder spraying
Diameter: φ165mm integrated design
Wall thickness: 3.5mm high-strength tube wall
Wind resistance level: 12 (can withstand 70m/s wind speed)
Warranty: 10-year ultra-long warranty

2. LED lighting system
Power: 20W
Light efficiency: 180 lumens/W
Brightness: 3600 lumens
Chip: Lumileds 3030 imported chip
Color temperature: three levels optional (3000K warm light/4000K natural light/5000K cold light)
Light distribution: T2-T5 multi-mode lighting
Working temperature: -30℃~50℃ extremely wide temperature range
Warranty: 5 years

3. Energy storage system
Battery type: lithium iron phosphate (LiFePO₄)
Voltage capacity: 12.8V/30Ah (384Wh ultra-large capacity)
Cycle life: 2000 times (ultra-long service life)
Charging efficiency: 2 sunny days to fully charge (6 hours per day)
Endurance: 3 cloudy days with continuous lighting (12 hours per day)
