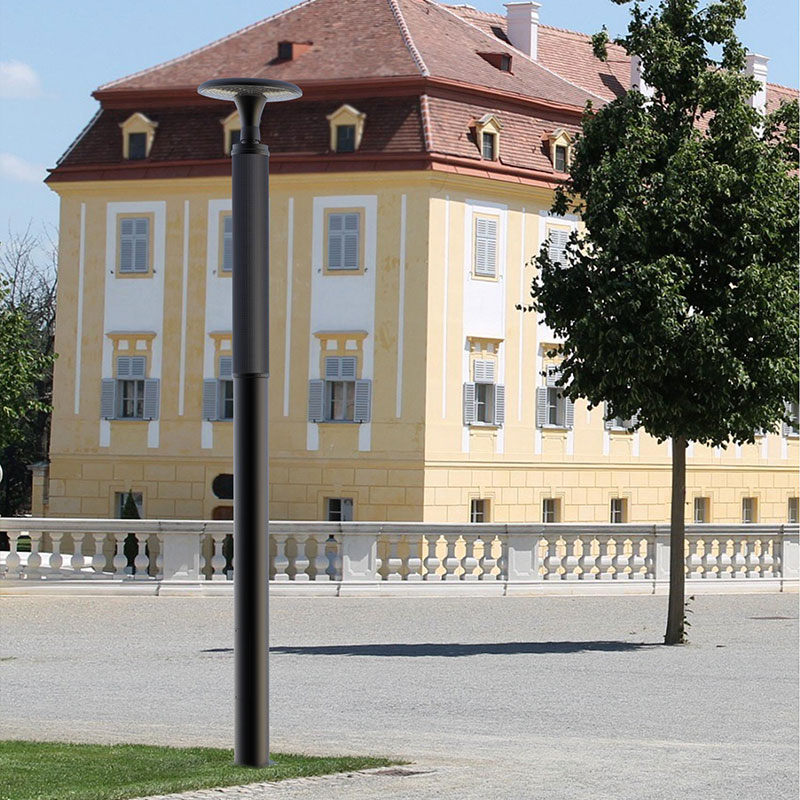

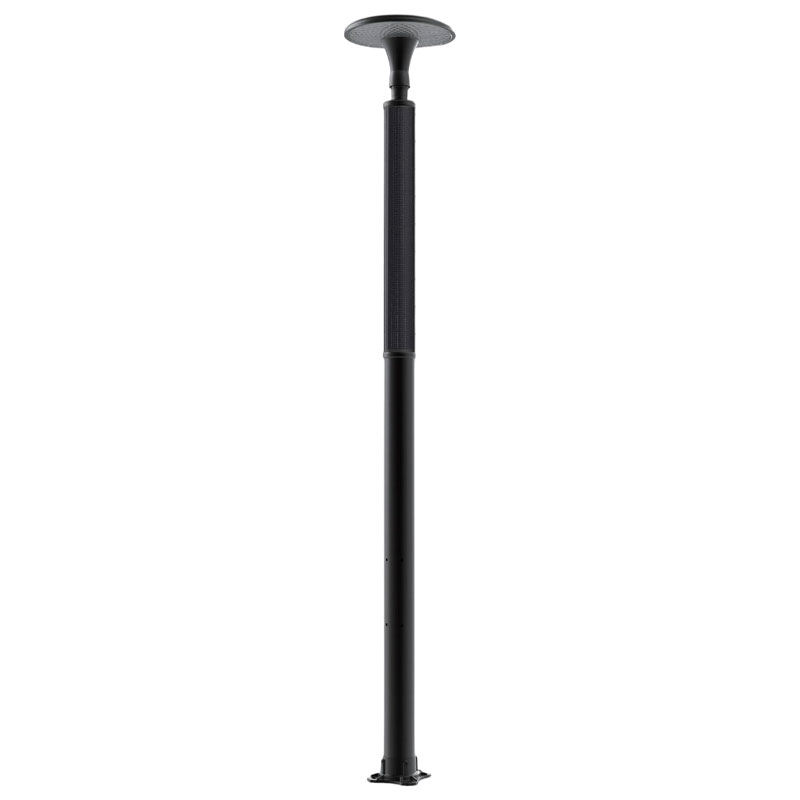

PAFOS Flexible HJT Aluminum Solar Light Pole

The Flexible HJT Aluminum PAFOS Solar Pole is made of aluminum alloy, with a total height of 5000 mm. It is equipped with a φ185x1370mm ultra-large flexible HJT solar panel and a 12.8V/30Ah lithium iron phosphate battery pack, and a 20W high-brightness LED lighting system. It is a new generation of intelligent lighting solutions designed for large outdoor spaces.

Core configuration parameters
1. Light pole system
Surface treatment: metal powder spraying
Diameter: φ165mm
Wall thickness: 3.5mm high-strength design
Wind resistance level: 12 (can withstand 70m/s wind speed)
Seismic level: 8

2. LED lighting system
Power: 20W (high efficiency and energy saving)
Light efficiency: 150 lumens/watt
Brightness: 3000 lumens
Chip: Lumileds 3030 imported chip
Color temperature: three levels optional (3000K warm light/4000K natural light/5000K cold light)
Protection level: IP65 all-weather protection
Lifespan: 50,000 hours (about 13.7 years)
Light distribution: 120° wide-angle uniform lighting
Working temperature: -30℃~50℃ extremely wide temperature range

3. Energy storage system
Battery type: LiFePO₄
Voltage capacity: 12.8V/30Ah (384Wh ultra-large capacity)
Cycle life: 2000 times (ultra-long service life)
Charging efficiency: Fully charged in 2 sunny days (6 hours per day)
Endurance: 3 cloudy days with continuous lighting (12 hours per day)
