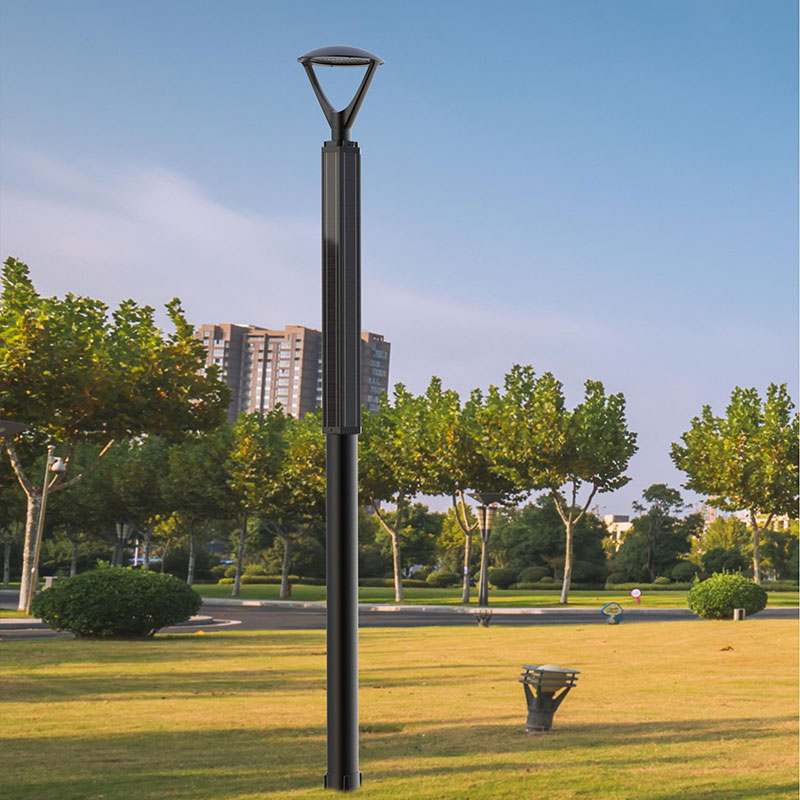

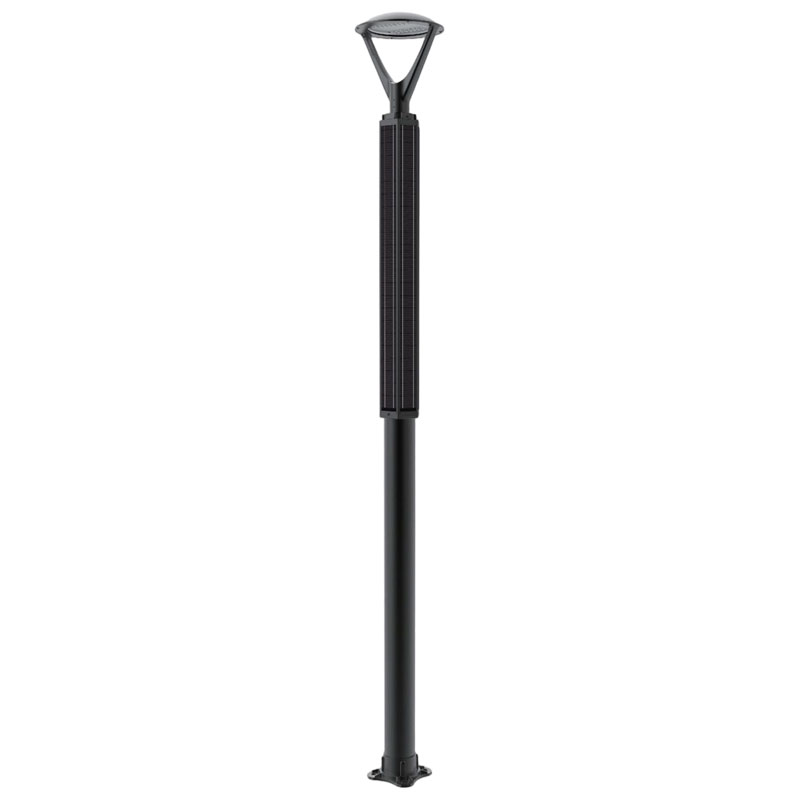

UZES Aluminum Innovative Solar Light Pole

The Aluminum Innovative UZES Solar Pole is made of 6063-T6 aluminum alloy, with a total height of 4000mm, equipped with 6 high-efficiency monocrystalline silicon modules (total power 132W) and a 12.8V/30Ah lithium iron phosphate energy storage system, and equipped with a 20W ultra-high brightness LED lighting unit to create a new generation of intelligent outdoor lighting solutions.

Core configuration
1. Light pole system
Material: 6063-T6 aviation-grade aluminum alloy
Diameter: φ165mm
Wall thickness: 3.5mm reinforced structure
Wind resistance level: 12 (70m/s)
Warranty: 10 years

2. Lighting system
Power: 20W
Light efficiency: 180 lumens/W
Brightness: 3600 lumens
Chip: Lumileds 3030
Color temperature: three adjustable levels (3000K/4000K/5000K)
Protection: IP65
Light distribution: T2-T5 multi-mode
Operating temperature: -30℃~50℃

3. Power generation system
Number of components: 6 pieces
Type: high-efficiency monocrystalline silicon
Total power: 132W (6×22W)
Efficiency: >22%
Dimensions: 228×1509mm
Daily power generation: ≥792Wh
